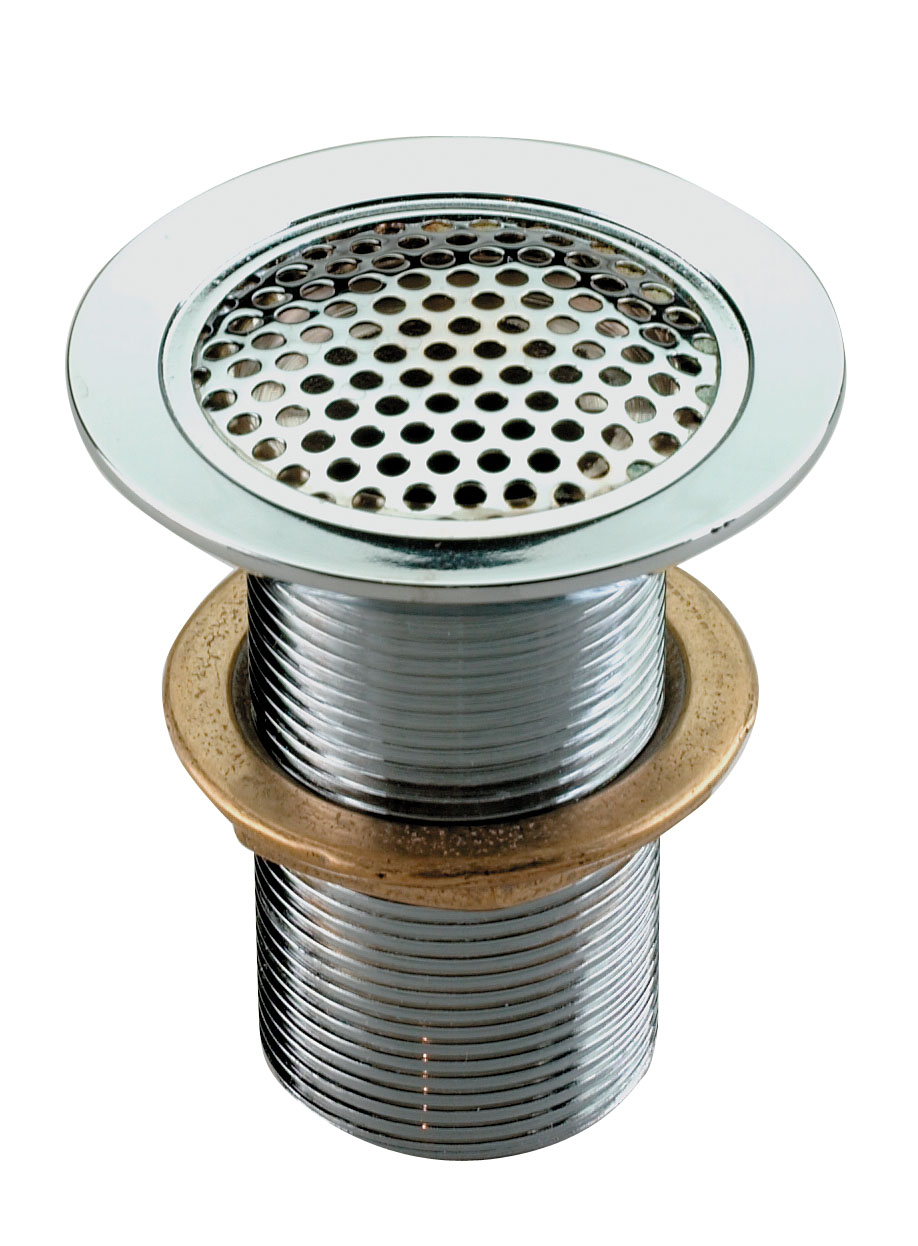

Flush Mount Drain for use with Pipe

Product Description
    • Cast Plated Cast Bronze Body with Brass Screen
    • The exterior surface of the flange is machined flat and designed to be countersunk into the hull, resulting in a smooth external fit.
Technical Information
  • For Pipe Sizes: 3/4" & 1-1/4" NPT/S
Ordering Information
Pipe Size Inches Mounting Hole Dia. Inches Maximum Hull Thickness Inches O.D. Flange Inches Standard Pkg. - 1 Pc. Ship Wt. Carton Lbs. Std. Pkg
3/4 1 2-3/8 2-1/2 0361005CHR 0.8
1-1/4 1-5/8 2-15/16 2-7/8 0361007CHR 1.4
Instructions & Resources
View in Print Catalog View 0361 in our Print Catalog
Spare Parts

Flanged Nut: 0075 (see table below for full part numbers)

Figure No. 0075 Spare Flanged Nut Sizes

Pipe Size Cast Bronze Retail Package
3/8" 0075003DPP
1/2" 0075004DPP
3/4" 0075005DPP
1" 0075006DPP
1-1/4" 0075007DPP
1-1/2" 0075008DPP
2" 0075009DPP
2-1/2" 0075010DPP
3" 0075011DPP
