Figure No: 0348

Category: Underwater Hardware

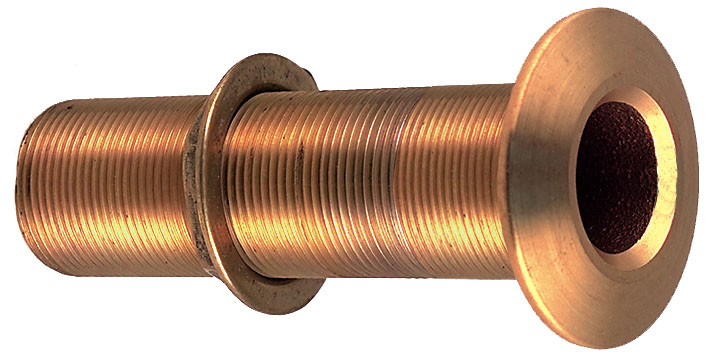

Extra Long Thru-Hull Connection for use with Pipe

[Fig. No. 0348]

Product Description

Cast Bronze
Flange is machined to fit hull and grooved to retain bedding compound
Neck is threaded to approximately 3/8 inch from flange

Technical Information

For Pipe Sizes: 3/4" to 2-1/2" NPT/S
Maximum Hull Thickness: Up to 5"

Illustration of Bedding Groove

0248 Clear

Ordering Information

Pipe Size Inches	Mounting Hole Dia. Inches	Max. Hull Thickness Inches	O.D. Flange Inches	Dealer Pkg. 5 Pcs.	OEM Bulk Package	OEM Bulk Pkg. Qty.	Ship Wt. Carton Lbs. DP/OEM Bulk
3/4	1	5	1-7/8	0348DP5PLB	0348005PLB	25	4.3/19.3
1	1-5/16	4-7/8	2-1/4	0348DP6PLB	0348006PLB	10	5.7/10.9
1-1/4	1-5/8	4-5/8	2-3/4	0348DP7PLB	0348007PLB	10	9.1/17.5
1-1/2	1-7/8	4-5/8	3	0348DP8PLB	0348008PLB	10	10.4/20.1
2	2-3/8	4-1/2	3-5/8	----------	0348009PLB	1	---/2.8
2-1/2	2-7/8	4-1/4	4-5/16	----------	0348010PLB	1	---/3.6

Instructions & Resources

View in Print Catalog

View Fig. 0348 in our Print Catalog

Spare Parts

Flanged Nut: 0075

Certifications

Marine UL Listed:
595E Thru-Hull Fitting
