Figure No: 0331

Category: Underwater Hardware

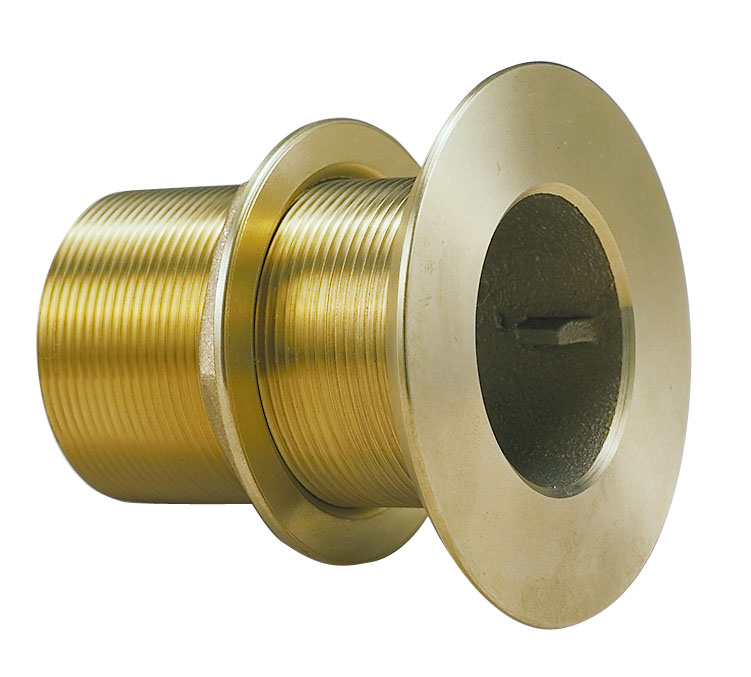

Flush Mount Thru-Hull Connection For Use with Pipe

[Fig. No. 0331]

Product Description

Cast Bronze

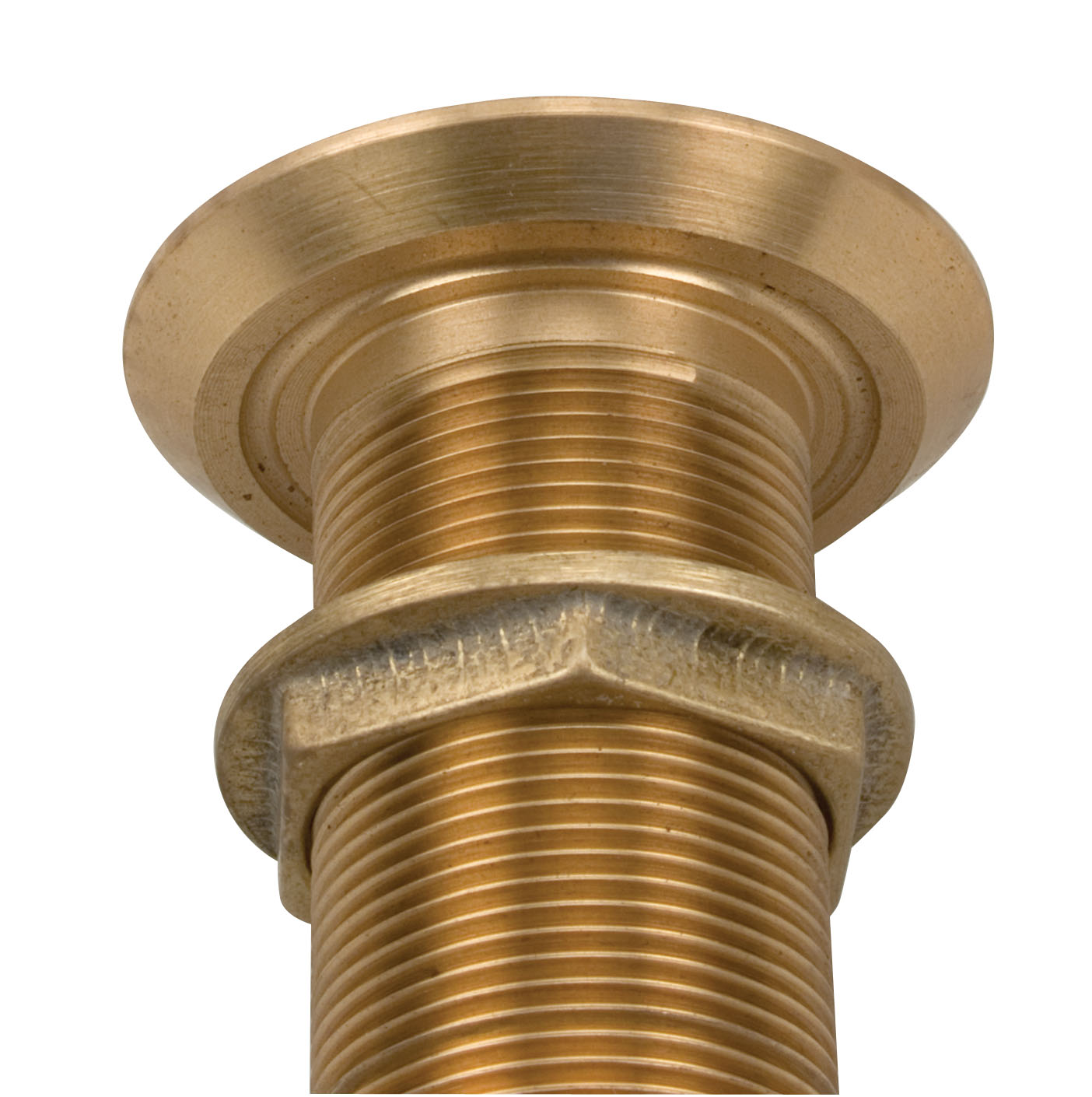

The exterior surface of the flange is machined flat and designed to be countersunk into the hull, resulting in smooth external fit with no raised portion to increase drag

Technical Information

For Pipe Sizes: 1/2" to 2" NPT/S
Max Hull Thickness: Up to 3-3/8"

Ordering Information

Pipe Size Inches	Mounting Hole Dia. Inches	Max. Hull Thickness Inches	O.D. Flange Inches	Dealer Pkg. 5 Pcs.	OEM Bulk Package	OEM Bulk Pkg. Qty.	Ship Wt. Carton Lbs. DP/OEM Bulk
1/2	13/16	2-3/16	1-11/16	0331DP4PLB	0331004PLB	10	2.3/4.6
3/4	1	2-3/8	2	0331DP5PLB	0331005PLB	10	2.8/5.4
1	1-5/16	2-9/16	2-1/4	0331DP6PLB	0331006PLB	10	3.9/7.0
1-1/4	1-5/8	2-15/16	2-7/8	0331DP7PLB	0331007PLB	10	6.7/12.8
1-1/2	1-7/8	3-1/16	2-31/32	0331DP8PLB	0331008PLB	10	7.3/13.0
2	2-3/8	3-3/8	3-7/8	----------	0331009PLB	1	---/2.3

Instructions & Resources

View in Print Catalog

View Fig. 0331 in our Print Catalog

Spare Parts

Flanged Nut: 0075

Certifications

Marine UL Listed:
595E Thru-Hull Fitting
