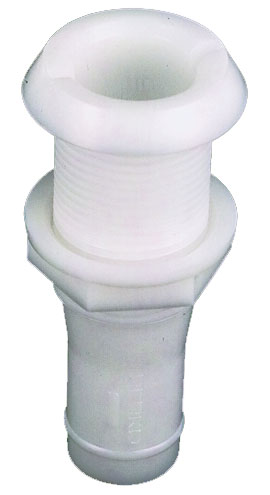

| White Plastic | ||||||
|---|---|---|---|---|---|---|
| Hose Size Inches | Mounting Hole Dia. Inches | Max. Hull Thickness Inches | O.D. Flange Inches | Dealer Pkg. 10 Pcs. | OEM Bulk Pkg. 100 Pcs. | Ship Wt. Carton Lbs. DP/OEM Bulk |
| 1/2 | 13/16 | 1-1/4 | 1-1/4 | 0301DP4 | 0301004 | 0.8/5.0 |
| 5/8 | 13/16 | 1-1/4 | 1-1/4 | 0301DP4A | 030104A | 0.9/5.1 |
| 3/4 | 1 | 1-7/16 | 1-1/2 | 0301DP5 | 0301005 | 1.2/7.6 |
| 1 | 1-5/16 | 1-1/2 | 1-7/8 | 0301DP6 | 0301006* | 1.7/6.1 |
| 1-1/8 | 1-5/16 | 1-1/2 | 1-7/8 | 0301DP6A | 030106A* | 1.6/6.2 |

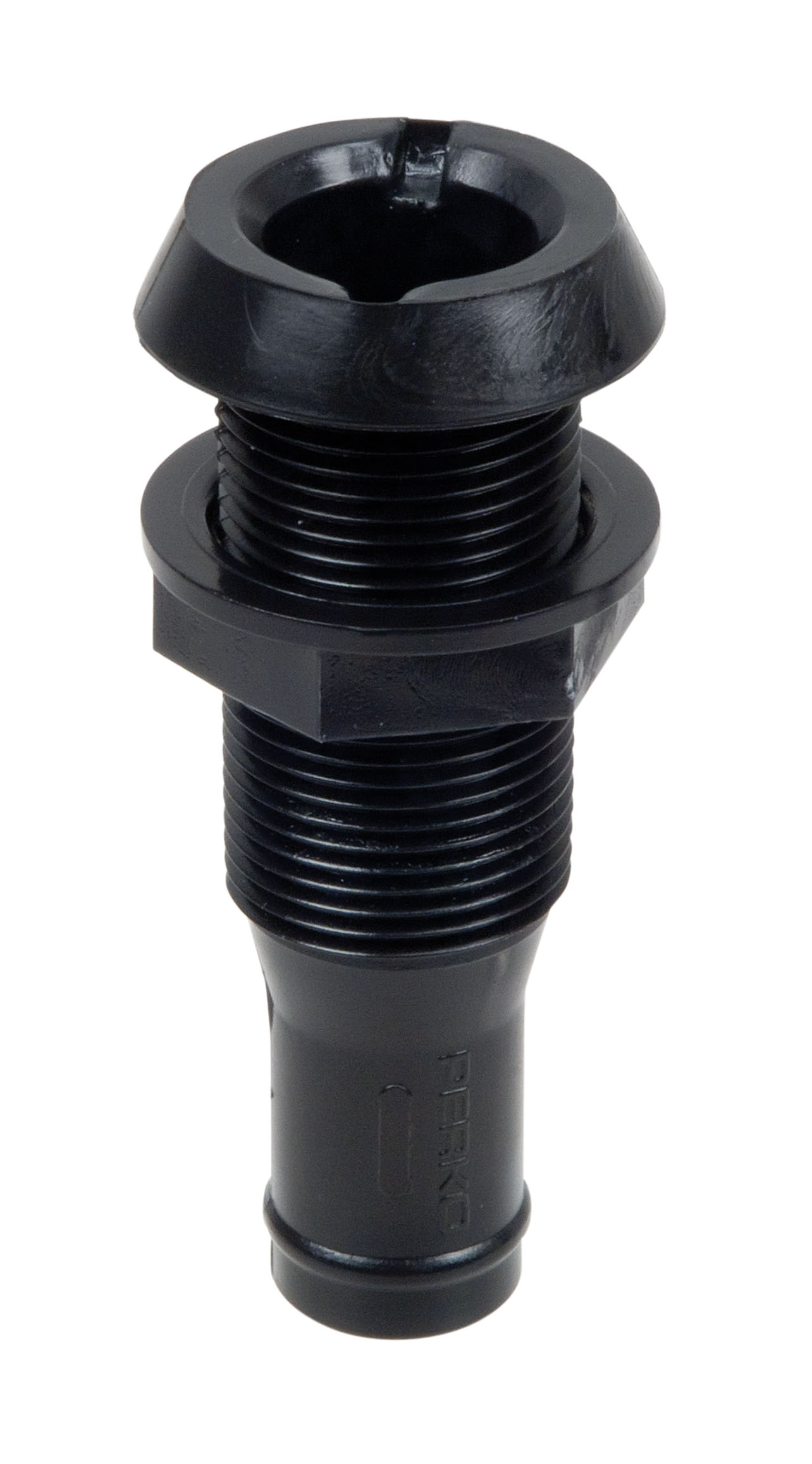

| 1-1/2 | 1-7/8 | 1-7/8 | 2-1/2 | 0301DP8 | 0301008* | 3.4/14.0 | Black Plastic |
| Hose Size Inches | Mounting Hole Dia. Inches | Max. Hull Thickness Inches | O.D. Flange Inches | OEM Bulk Pkg. 100 Pcs. | Ship Wt. Carton Lbs. OEM Bulk | |
| 1/2 | 13/16 | 1-1/4 | 1-1/4 | 0301004BLK | 5.0 | |
| 5/8 | 13/16 | 1-1/4 | 1-1/4 | 030104ABLK | 5.1 | |
| 3/4 | 1 | 1-7/16 | 1-1/2 | 0301005BLK | 7.6 | |
| 1 | 1-5/16 | 1-1/2 | 1-7/8 | 0301006BLK* | 6.1 | |
| 1-1/8 | 1-5/16 | 1-1/2 | 1-7/8 | 030106ABLK* | 6.2 | |
| 1-1/2 | 1-7/8 | 1-7/8 | 2-1/2 | 0301008BLK* | 14.0 |
Thru-Hull Connections for use with hose are not recommended for use below the waterline per A.B.Y.C. "Safety Standards for Small Craft" Section H-27.
Figure Numbers 0301006, 030106A, 0301008, 0301006BLK, 030106ABLK and 0301008BLK OEM Bulk Package Quantity is 50 Pieces.
Still have a question about the Figure No. 0301 Thru-Hull Connection for Use with Hose that wasn't answered on this page? Contact us!
View Contact Information
