- Cast Bronze
- Stainless Steel Basket
- Clear Polymer Cylinder

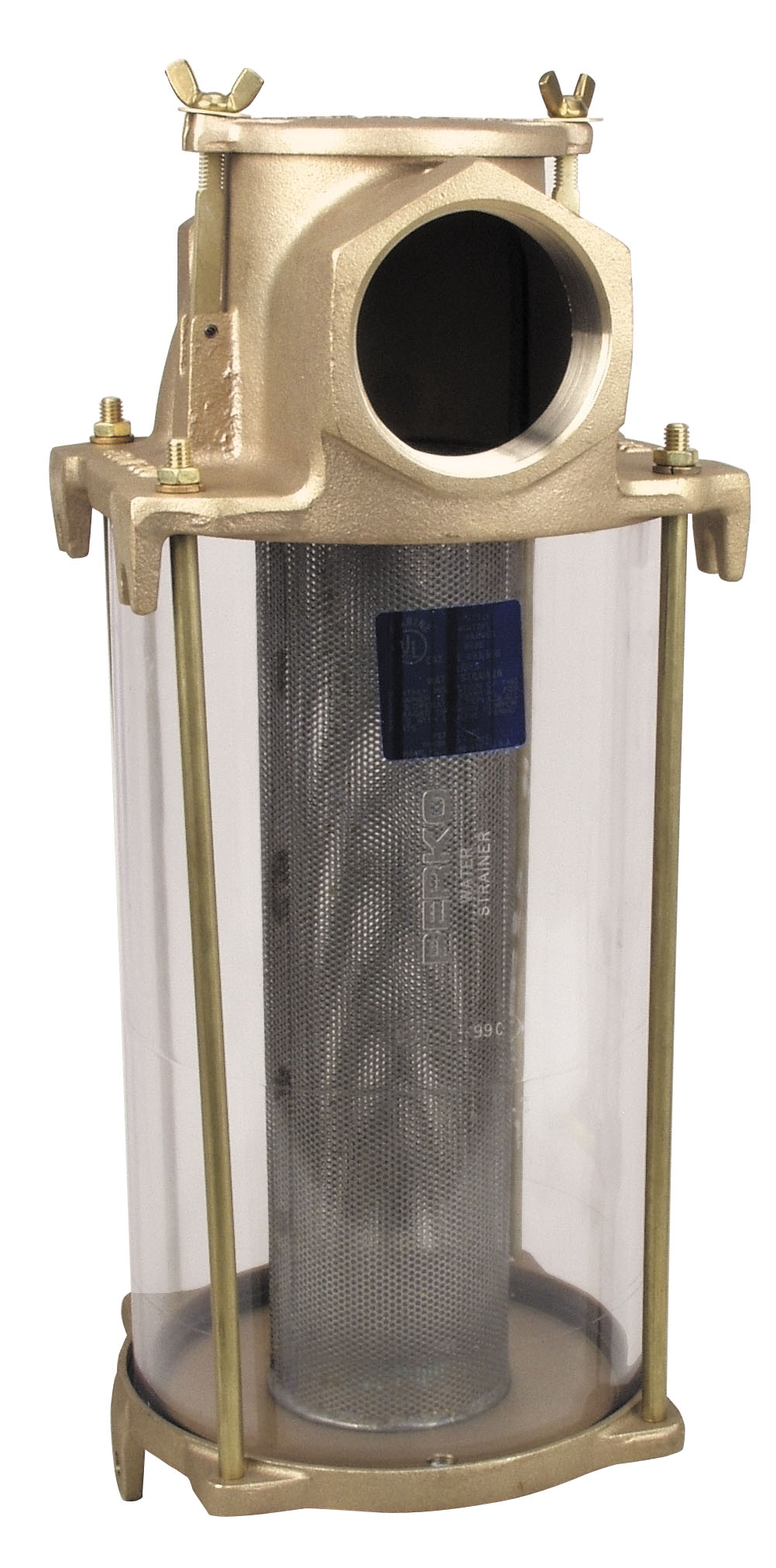

PERKO Intake Water Strainers are designed for easy installation and cleaning. Features include mounting lugs cast into both sides to assure universal mounting, four outside tie rods and a 316 stainless steel strainer basket to minimize electrolysis. Screen hole diameter .079 inches, 47% open area, among the highest in the industry for cylindrical strainer baskets.
Hinged lugs for the cast bronze cover permit easy removal and cleaning of the strainer basket.
A drain plug in the bottom casting is provided for easily removing sediment and draining for winterizing. For applications requiring higher capacity, use Fig. 0500.
|Pipe Size Inches||Height Overall Inches||Width Overall Inches||Standard Pkg. - 1 Pc.||Dimensions Cylinder Inches O.D. x Height||Dimensions Basket Inches O.D. x Height||Open Area To Pipe Size Ratio||Ship Wt. Carton Lbs. Standard Pkg.||Spare Gasket Kit* Standard Pkg. - 1 Kit|
|2||14-1/2||9||0500009PLB||8 x 10||3-7/8 x 10-1/4||20:1||36.0||0500DP999M (or) 99R|
|2-1/2||16-1/2||9||0500010PLB||8 x 12||3-7/8 x 12-1/4||18:1||33.5||0500DP999M (or) 99R|
|3||18-1/2||9||0500011PLB||8 x 14||3-7/8 x 14-1/4||14:1||34.0||0500DP999M (or) 99R|
