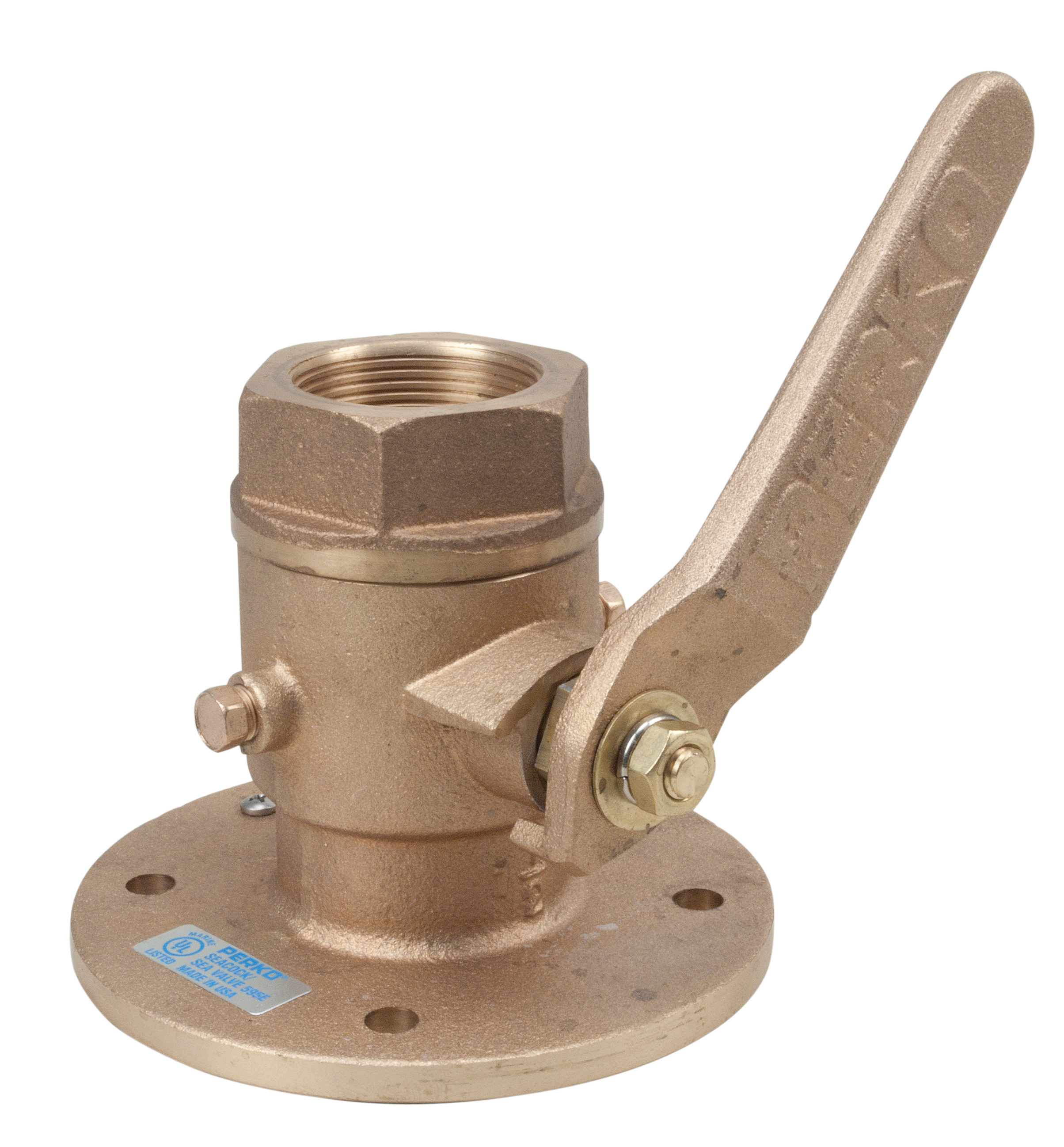

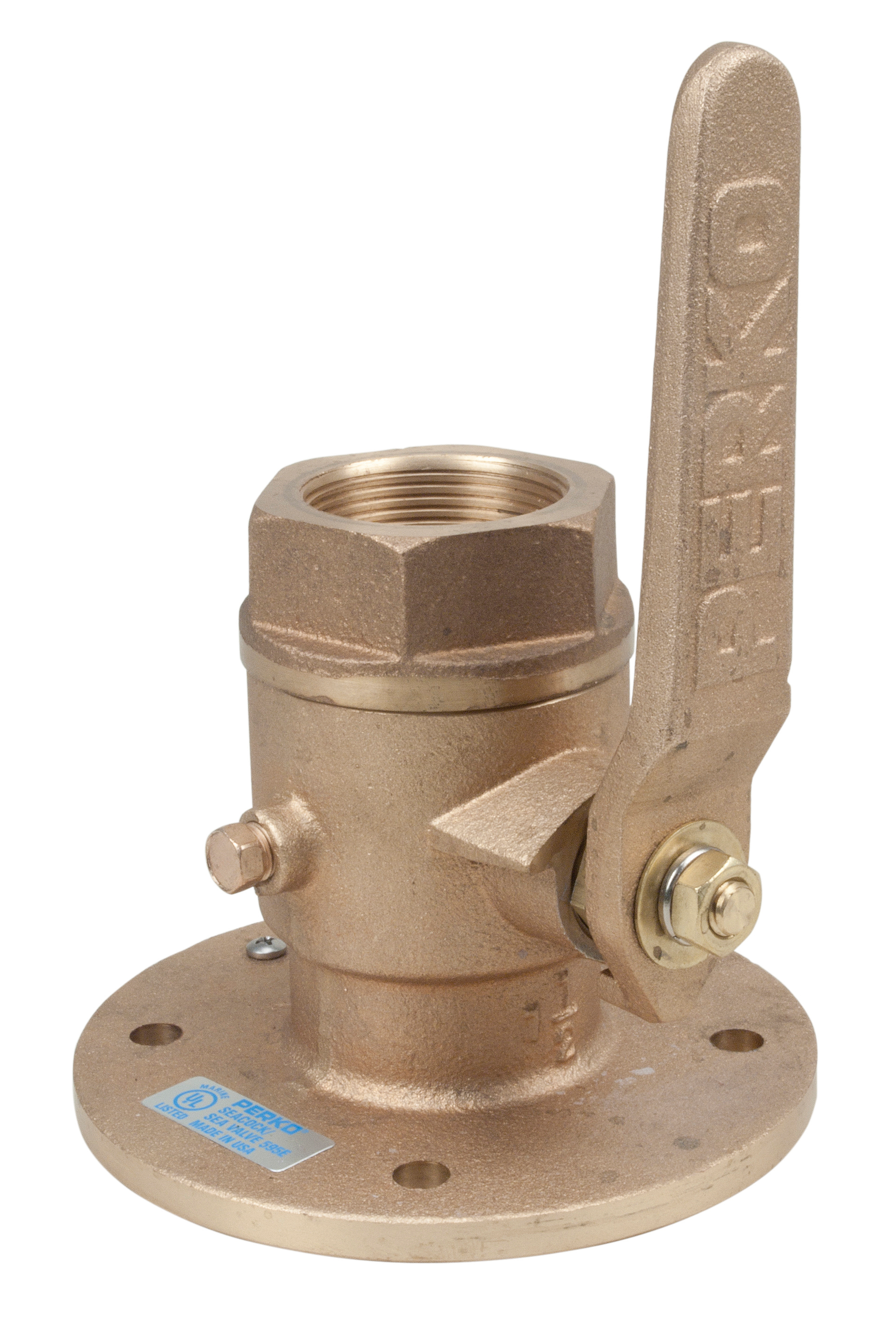

Seacock Body - Ball Valve Design

Cast Bronze
These Valve Bodies are Offered to Meet the Needs of Applications that Require Extra Long, Scoop or Flush Type Thru-Hulls

Marine UL Listed:
595E Sea Valve

Flange Diameter Inches	Overall Height Inches*	Pipe Size Inches	Fig. 0805 Standard Pkg. - 1 Pc.	Ship Wt. Carton Lbs. Standard Pkg.
3-1/4	3-3/8	3/4	0805005PLB	2.3
4-3/8	3-3/4	1	0805006PLB	3.9
4-7/8	4-1/4	1-1/4	0805007PLB	5.3
5-1/2	4-1/2	1-1/2	0805008PLB	6.7
5-3/4	5-3/4	2	0805009PLB	11.5
7-1/4	7-1/2	2-1/2	0805010PLB	20.0
8	7-3/4	3	0805011PLB	23.3

*Overall Height is measured from the top of the hose adapter to the bottom of the flange.

The repair kits (99B) listed below consist of: 1 ball, 2 ball seats and 2 o-rings for the valve stem.

The stem (99C) listed below consist of: 1 stem, 1 stem nut and 2 o-rings for the valve stem.

Size No.	Pipe to Hose Size Inches	Repair Kit Part No.	Stem Part No.	Handle Part No.
5	3/4 to 3/4	080500599B	080500599C	080500599D
6	1 to 1	080500699B	080500699C	080500699D
7	1-1/4 to 1-1/4	080500799B	080500799C	080500799D
8	1-1/2 to 1-1/2	080500899B	080500899C	080500899D
9	2 to 2	080500999B	080500999C	080500999D
10	2-1/2 to 2-1/2	080501099B	080501099C	080501099D
11	3 to 3	080501199B	080501199C	080501199D
