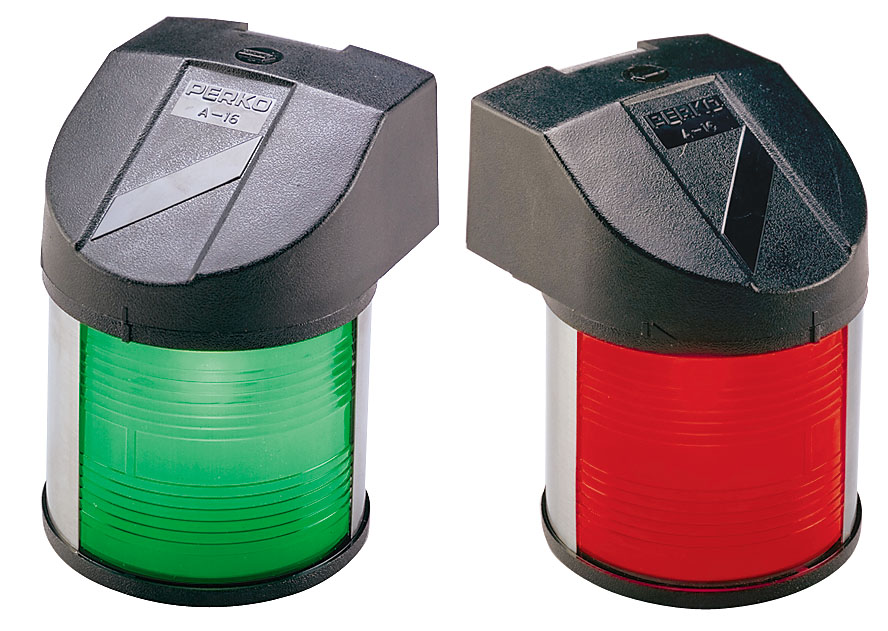

Top Mount Red and Green Side Navigation Lights

For Replacement Use Only on all boats under 65.6 ft. (20 meters)

Product Description

Black Polymer with Stainless Steel Mounting Bracket
For Replacement Use Only on all boats under 65.6 ft. (20 meters)

Technical Information

Voltage: 12 or 24 Volt (Bulb Included)
For 32 Volt Bulb please contact the Factory
Wattage: 25 watt bulb or 10 watt bulb
Amperage: 25 watt - 12 Volt: 2.08 amps / 24 Volt: 1.04 amps
10 watts - 12 Volt: .83 amps / 24 Volt: .42 amps
Height Overall: 4-13/16"
Height Lens: 2-3/4"
O.D. Base Inches: 3-5/16"
Projection Inches: 3-5/16"
Visibility Arc: 112-1/2°
Visibility: 2 nautical miles
Screw Size: #10

Ordering Information

Description	Black Dealer Pkg. - 5 Cards 1 Pc. per Card	White (12 Volt Only) Dealer Pkg. - 5 Cards 1 Pc. per Card	Replacement Bulb	Ship Wt. Carton Lbs. D.P./Std. Pkg.
Red Side Light	0200PT0DP1	0200PT0W01	037512V25W	4.5/1.0
Green Side Light	0200SDTDP1	0200SDTW01	037512V25W	4.5/1.0

Instructions & Resources

Installation Instructions

UKCA Certificate

CE Certificate

View 0200PT0, 0200SDT in our Print Catalog

Product Notes

Ordering Info - For 24V Lights
For 24V Lights, Replace the "DP1" with "DP2". For the Replacement Bulb, Replace the "12V" with "24V" (e.g., 037524V25W).

Ordering Info - For 32V Lights
For 32V Lights, Replace the "DP1" with "DP3". For the Replacement Bulb, Replace the "12V" with "34V" (e.g., 037532V25W).

Spare Parts

Lens Assembly Part Numbers are Determined by Replacing the last Three Digits of the Catalog Number with the Letters "LNS" (example: 0200BT0LNS, for a Bi-Color Top Mount Lens Assembly)

Replacement Bulb Sockets: (single and lower for double) Cat. No. 0093, (upper for double), Cat No. 0995.
