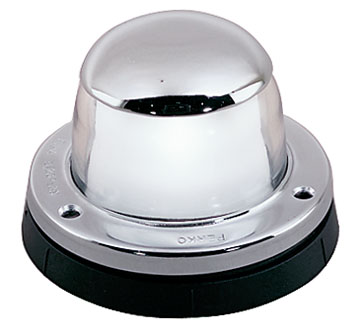

Horizontal Surface Mount Masthead Light

Certified For Replacement Use Only on Sail or Power Driven Vessels Under 12 Meters (39.4 ft.) in Length

Product Description

This product is no longer made in Chrome. Now only offered in Stainless Steel.

Chrome Plated Brass or Stainless Steel Top
Black Polymer Base
2 Mile Visibility

Technical Information

Voltage: 12 Volt (Bulb Included)
Wattage: 10 watts
Amperage: .80 amps
O.D. Base: 2-3/8"
Height: 1-5/8"
Screw Size: #4

Ordering Information

Finish	Dealer Pkg. - 5 Cards 1 Pc. per Card	Ship Wt. Carton Lbs. Dealer Pkg.
Chrome Brass	0964DP0CHR	1.1
Stainless Steel	0964DP0STS	1.1

Instructions & Resources

Installation Instructions

UKCA Certificate

CE Certificate

View 0964 in our Print Catalog

Product Notes

NOTE: Figs. 0972, 0963 & 0965 meet the USCG requirements for 12-volt applications. Fig. 0964 can only be used as a 12-volt, A-16 replacement light on vessels built before 11/1/03. All of the above can also be used as 24-volt A.B.Y.C. A-16 certified lights on boats built prior to 11/1/03. To use as 24-volt lights while maintaining A-16 certification, replace the bulbs provided with Cat. No. 0072DP1CLR 24-volt bulbs. Contact us for 24 volt applications on new construction.
