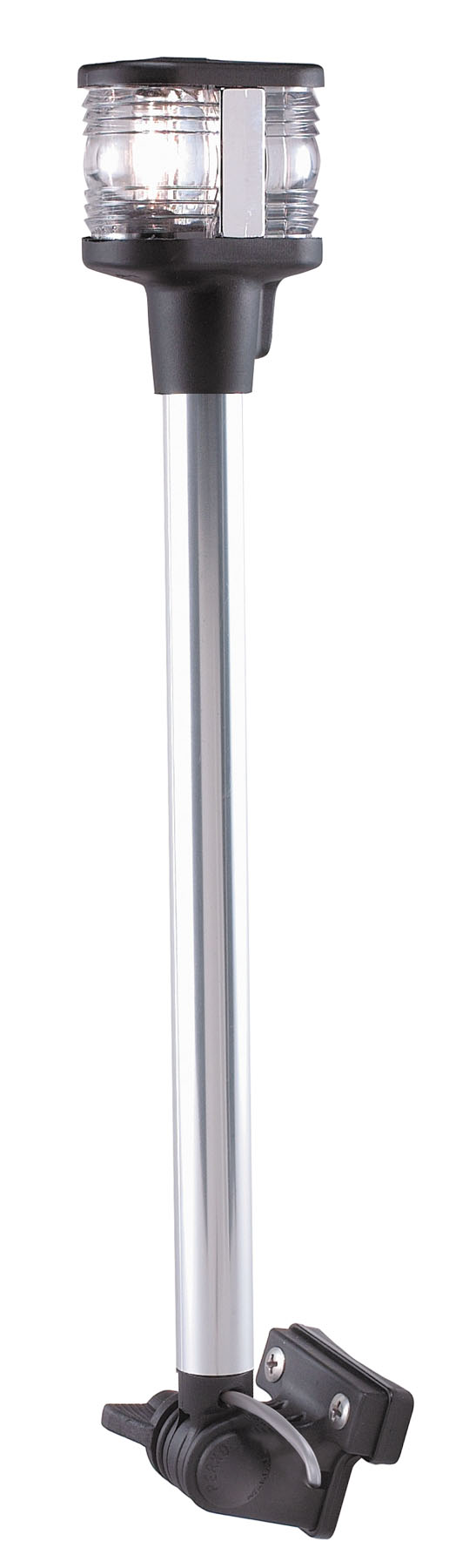

Fold Down Combination Masthead - White All-Round Light - Horizontal Mount

Certified For Use on Sail or Power Driven Vessels Under 20 Meters (65.6 ft.) in Length

Product Description
    • Horizontal Mount
    • Reduced Glare Design
    • Black Polymer Top with Clear Polymer Lens
    • Black Polymer Base
    • Polymer Adapters for Flat or "V" Type Mount, Contains Notch for Through-Base Wiring
    • Fold-Down Adjustable Angle
    • 3-Mile (USCG 3nm) Certified
Technical Information
  • Voltage: 12 Volt (Two Bulbs Included)
  • Wattage: 10 watts (each compartment)
  • Amperage: .80 amps (each compartment)
  • Gold Plated Contacts
  • Pole: 3/4" Diameter Anodized Aluminum Tube
  • Height: 14-1/4"
  • Base Dimensions: 2" x 1-1/2"
  • Center to Center Base Dimensions: 1-3/8"
  • Screw Size: #8
Ordering Information
Dealer Pkg. 5 Cards 1 Pc. per Card OEM Bulk Pkg. 50 Pcs. Ship Wt. Carton Lbs. DP/OEM Bulk
1181DP0CHR 1181000CHR 4.3/31.7
Product Notes
NOTE: Figs. 1178, 1181, 1183, 1184, 1196, 1197 & 1201 meet USCG requirements for 12 and 24 volt applications. All of the above can also be used as 24-volt A.B.Y.C. A-16 certified lights on boats built prior to 11/1/03. To use as 24-volt lights while maintaining A-16 certification, replace the bulbs provided with Cat. No. 0072DP1CLR 24-volt bulbs. Contact us for 24 volt applications for new construction.
Spare Parts

12 Volt Bulbs (2 per card): 0071DP0CLR

Lens (2 per card): 0278DP0WHT

Top Cap and Screw: 1158DP0BLK

Old Style Zinc Spare Bracket with Knob and End Plug: 1052DP0CHR

New Style Polymer Spare Bracket with Knob and End Plug: 1052DPBBLK

Knob for Old Style Bases: 1144A00BLK
