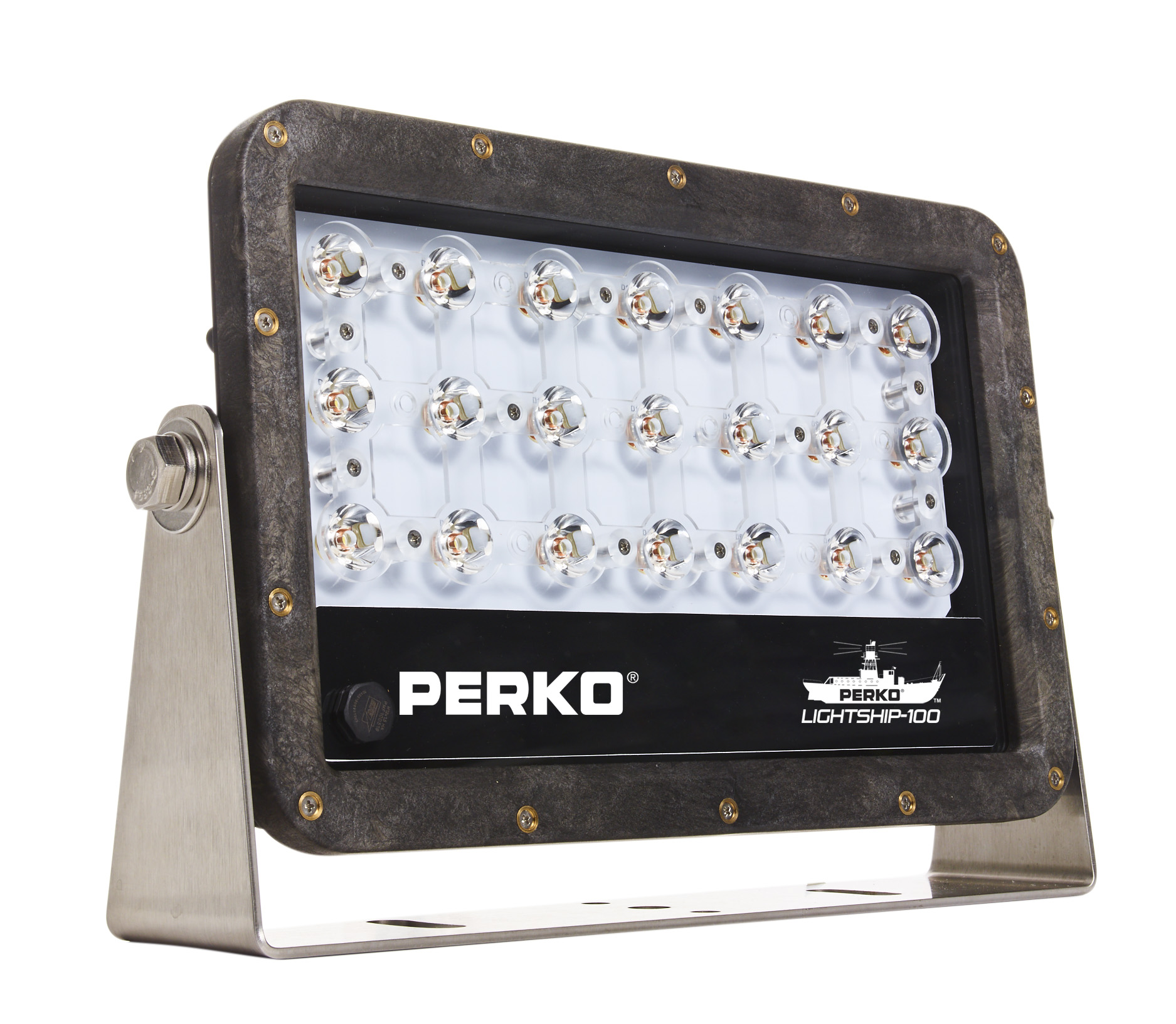

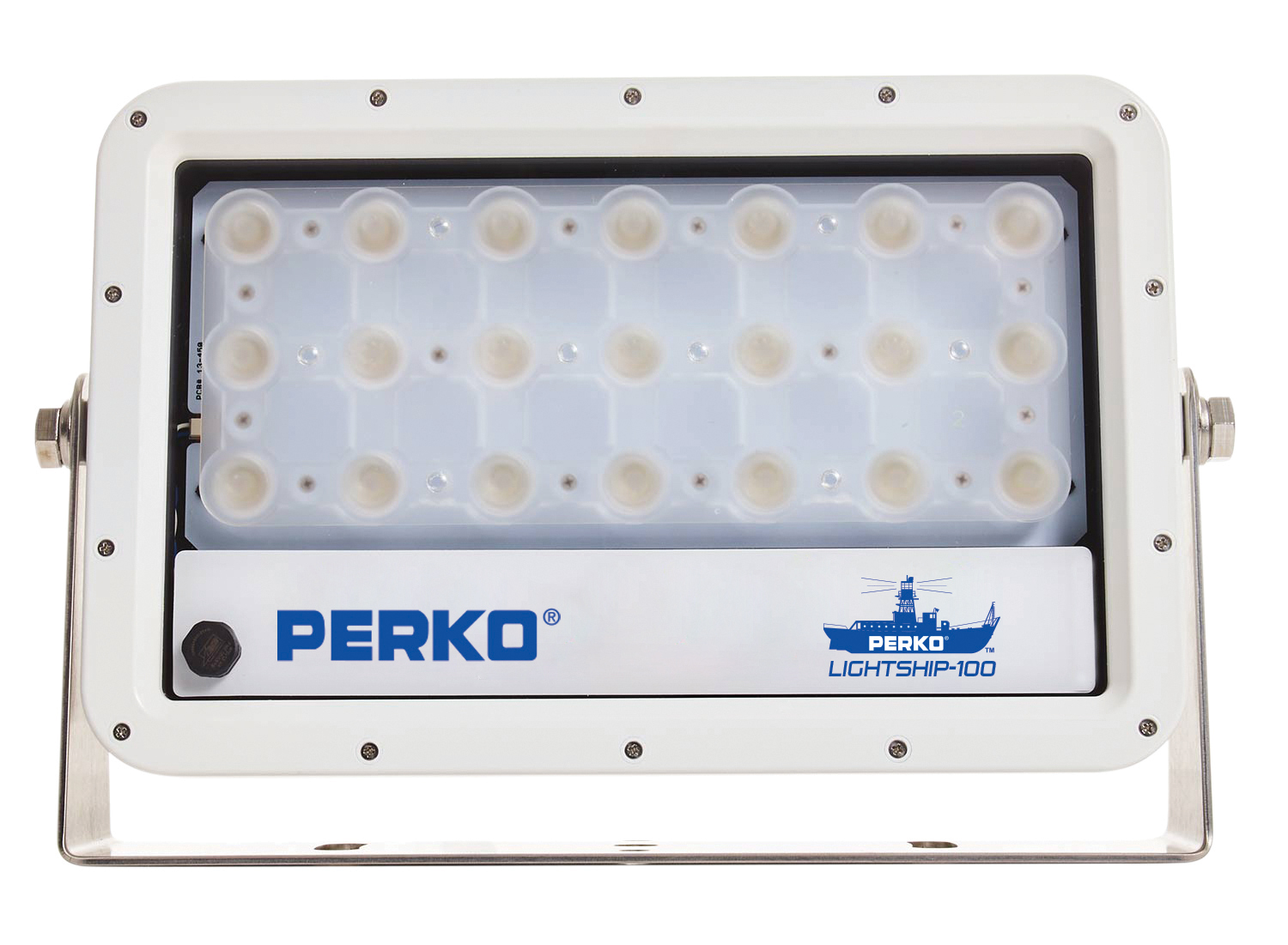

High Performance LED Floodlight - Lightship 100

Available Finishes
White
Black
Product Description
LED Technology
    • 13,300 Lumens (Approx. at 12VDC)
    • 16,670 Lumens (Approx. at 24VDC)
    • 5000K neutral white optics
    • Available in Black or White
    • Marine grade aluminum mounting bracket included
    • Designed and assembled in the USA
    • 5 Year Limited Warranty
    • 10 Year Limited Warranty/Light Engine Assembly
Technical Information
  • Dimensions: 12.9" x 9.5" x 3.1" (with bracket)
  • Beam Angle: 76° (Flood) / 25° (Spot)
  • Voltage: 12VDC, 24VDC, 32VDC auto detect
  • Current Draw: 8.8A at 12VDC / 5.7A at 24VDC
  • Total power consumption: 110 watts at 12VDC
  • Weight: 11 lbs.
  • Water Resistance: IP68 Certified
  • Temperature Range: -40°C to 55°C
  • Vibration Resistance: 100,000 cycles, 3-axes ANSI C136.31
Ordering Information
Color Type Catalog Number
White Flood 1643100F0W
White Spot 1643100S0W
Black Flood 1643100F0B
Black Spot 1643100S0B
Instructions & Resources
Product Instructions 1643 Installation Instructions
