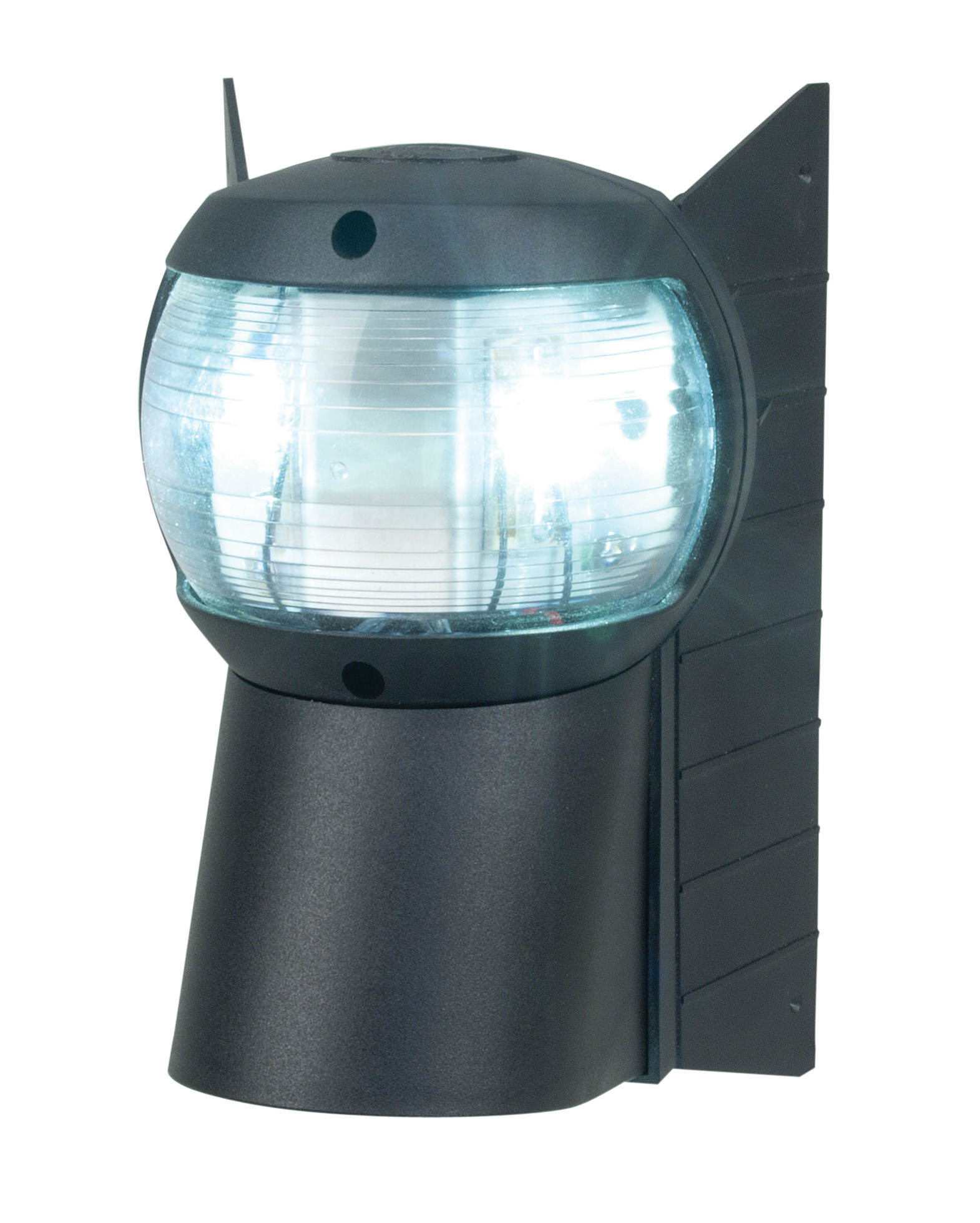

LED Vertical Mount Combination Masthead Deck Spreader Light

Certified For Use on Sail or Power Driven Vessels Under 20 Meters (65.6 ft.) in Length

Product Description
LED Technology
    • Black Polymer
    • L.E.D. Masthead and Spreader for Low Power Consumption

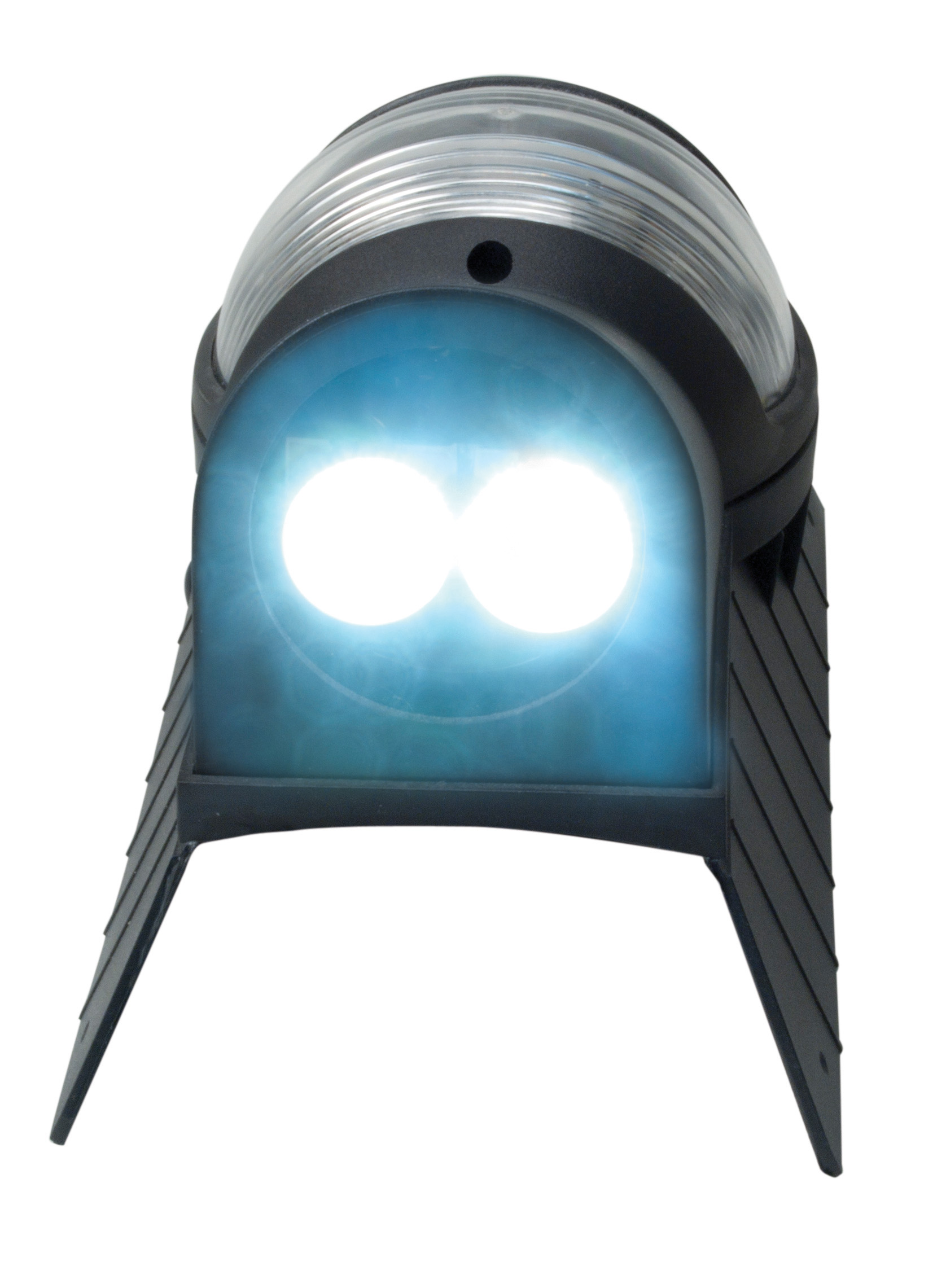

    • Bottom light works as a Combination Spreader and Deck Illumination Light
Technical Information
  • Voltage: 12 Volt LED
  • Wattage: 5.6 watts (Masthead Light) / 2.2 watts (Spreader Light)
  • Amperage: 0.4 amps (Masthead Light) / 0.18 amps (Spreader Light)
  • Height: 7"
  • Width: 4-1/8"
  • Projection: 4-3/4"
  • Screw Size: #10
Ordering Information
Standard Pkg. 1 Pc. Ship Wt. Carton Lbs. DP/Std. Pkg.
0170BMD12L 0.9/5.4
Product Notes

The old 12 volt 0120 Series lights are superseded by the 0170 Series
