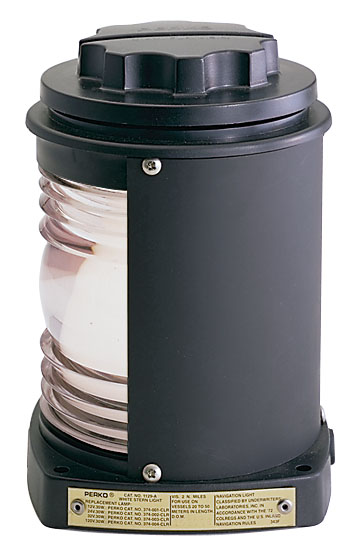

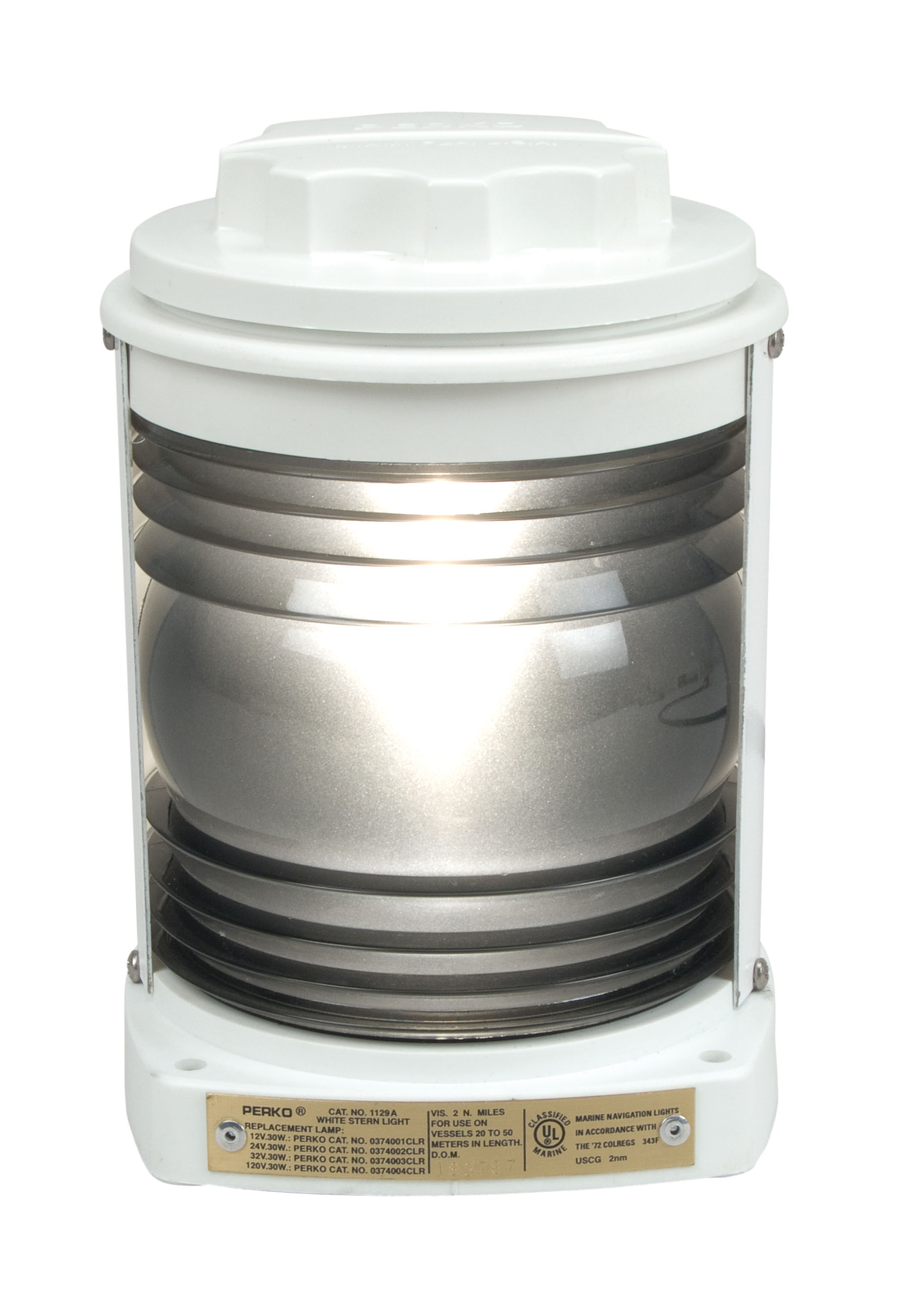

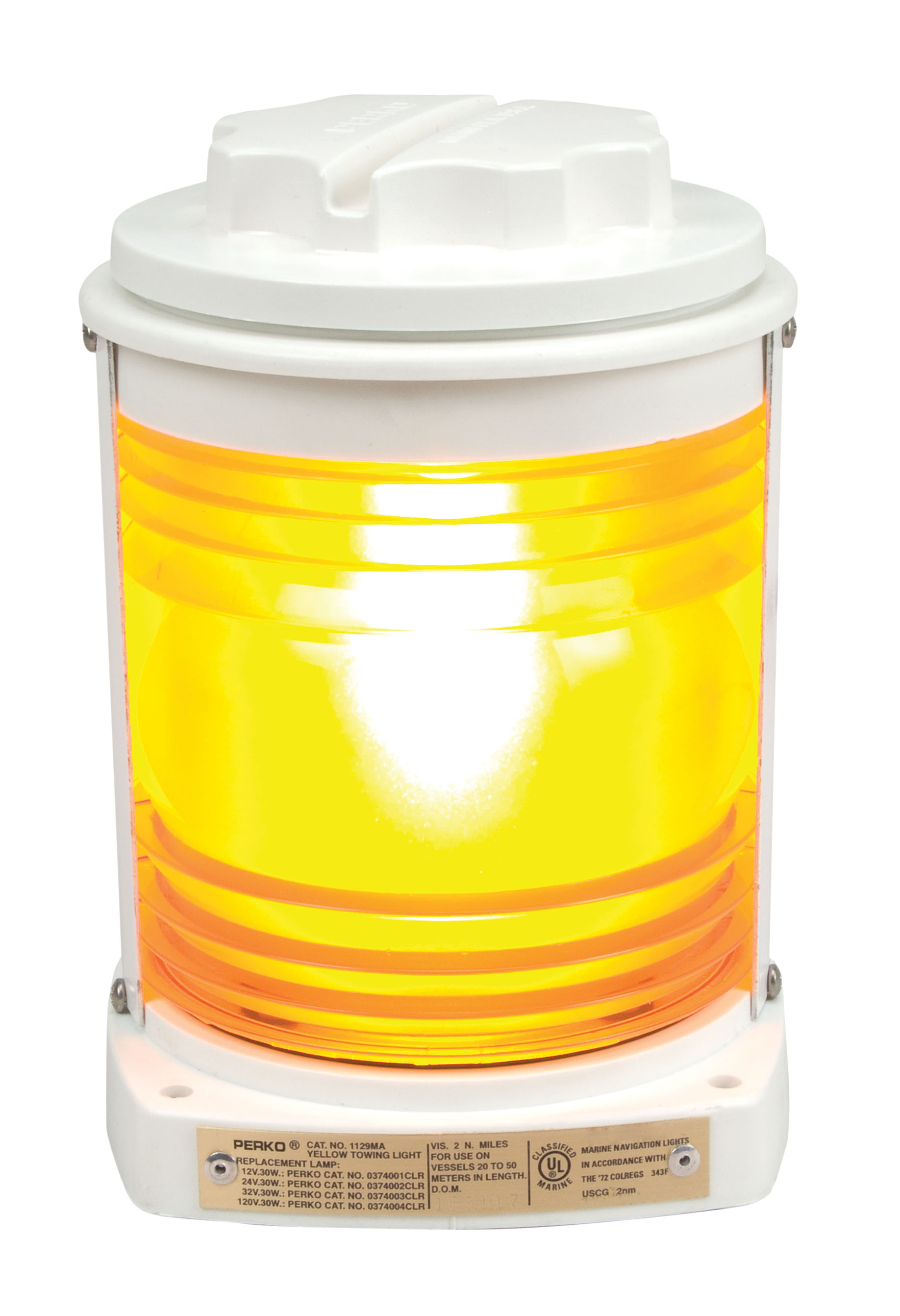

White Stern Light / Yellow Towing Light

Certified For Use on Vessels 20 Meters (65.6 ft.) to 50 Meters (164.0 ft.) in Length

Available Finishes
Black
White
Product Description
    • Black or White Polymer
    • Pre-Wired Double Contact with 3 Feet of 16/3-SJO Cable
    • Watertight Access Cap for Rebulbing and Cleaning
    • 2-Mile (USCG 2nm) Certified
    • IMPORTANT BULB DATA
      To comply with UL Standard 1104, the lights listed on this page must use a PERKO Cat. No. 0374 bulb.
Technical Information
  • Voltage: 12, 24 or 120 Volts (Not Included)
  • 32 Volt Bulb Available - Contact Factory
  • 12 Volt Wattage & Amperage: 30 watts / 2.5 amps
  • 24 Volt Wattage & Amperage: 30 watts / 1.25 amps
  • 120 Volt Wattage & Amperage: 30 watts / .25 amps
  • Height Overall: 7-1/2"
  • Height Lens: 4-1/2"
  • Screw Size: 1/4"
  • Visibility Arc: 135°
Ordering Information
Type Color Std. Pkg. - 1 Pc. Ship Wt. Carton Lbs. Standard Pkg.
White Stern Light Black 1129A00BLK 2.7
White Stern Light White 1129A00WHT 2.7
Yellow Towing Light Black 1129MA0BLK 2.7
Yellow Towing Light White 1129MA0WHT 2.7
Product Notes
The 1129A00BLK White Stern Light is supplied with a Gray Tinted Lens.
Spare Parts

Lenses


White: 0249000CLR

Yellow: 0249000YLW

Blue: 0249000BLU

Required Bulbs


12 Volt: 0374001CLR

24 Volt: 0374002CLR

120 Volt: 0374004CLR

Other Parts


O-Ring for Cap:: 1119

Double Contact Socket: 0134

Access Cap, O-Ring and Retainer (Black): 1105000BLK

Access Cap, O-Ring and Retainer (White): 1105000WHT
