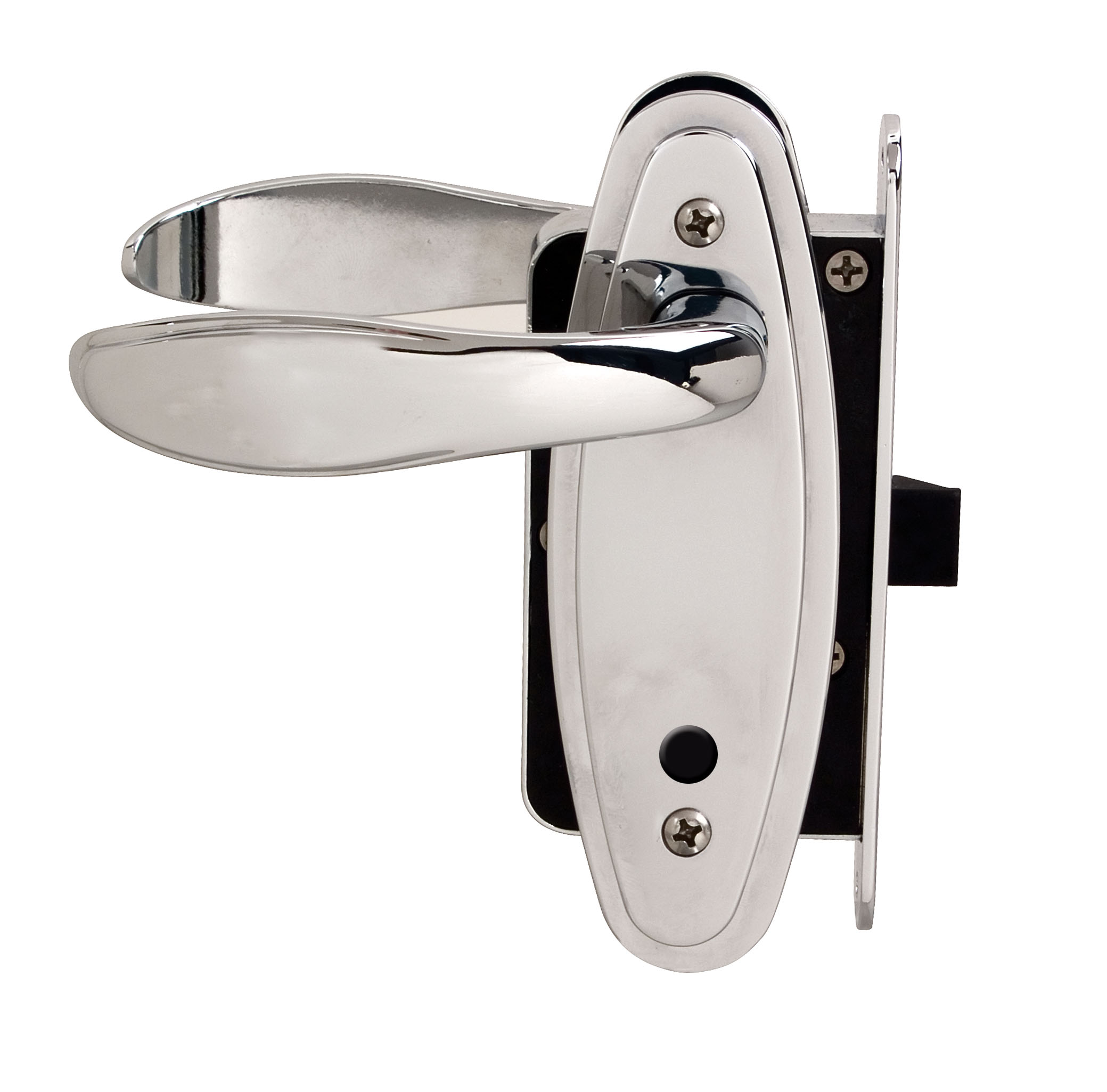

Mortise Latch Set

Product Description
    • No privacy lock
    • Chrome Plated Brass and Zinc Alloy Components
    • Two Escutcheon Plates
    • New Contemporary Styling
    • Safety Unlock from Outside
    • Bevels are Interchangeable
Technical Information
  • Overall Height: 5-1/4"
  • For Door Thickness 1/2" to 3/4"
Determining the Hand of a Lock or Latch Set

When standing outside if the door opens away from you, you need a lock or latch with a regular bevel.

If the door opens towards you, you need a lock or latch with a reverse bevel.


NOTE: The privacy latch handle should be mounted on the door's interior side.


  1. Lock/Latch Type - LEFT INWARD - Regular Bevel
  2. Lock/Latch Type - LEFT OUTWARD - Reverse Bevel
  3. Lock/Latch Type - RIGHT INWARD - Regular Bevel
  4. Lock/Latch Type - RIGHT OUTWARD - Reverse Bevel
Lock Latch Diagram Lock Latch Diagram
Ordering Information
Type For Door Thickness Inches Standard Pkg. 1 Set Type of Lock/Latch Ship Wt. Carton Lbs. Standard Pkg.
Mortise Latch 3/4 to 1 0706001LIC Left In or Right Out 1.5
Mortise Latch 3/4 to 1 0706001RIC Right In or Left Out 1.5
Mortise Latch 1 to 1-1/4 0706002LIC Left In or Right Out 1.5
Mortise Latch 1 to 1-1/4 0706002RIC Right In or Left Out 1.5
Mortise Latch 1-1/4 to 1-1/2 0706003LIC Left In or Right Out 1.5
Mortise Latch 1-1/4 to 1-1/2 0706003RIC Right In or Left Out 1.5
