Note: Selected figure numbers of this product are a part of our Perko Legacy program.
Perko Legacy products are no longer in regular production. Please contact our sales department for availability.
Please check the Ordering Information below. This icon ( ) denotes a Legacy product.
- Black, White or Gray Polymer Body
- Chrome Plated Zinc Alloy "T" Handle
- Stainless Steel Stem
- Gasket Included for Smooth Surface Applications

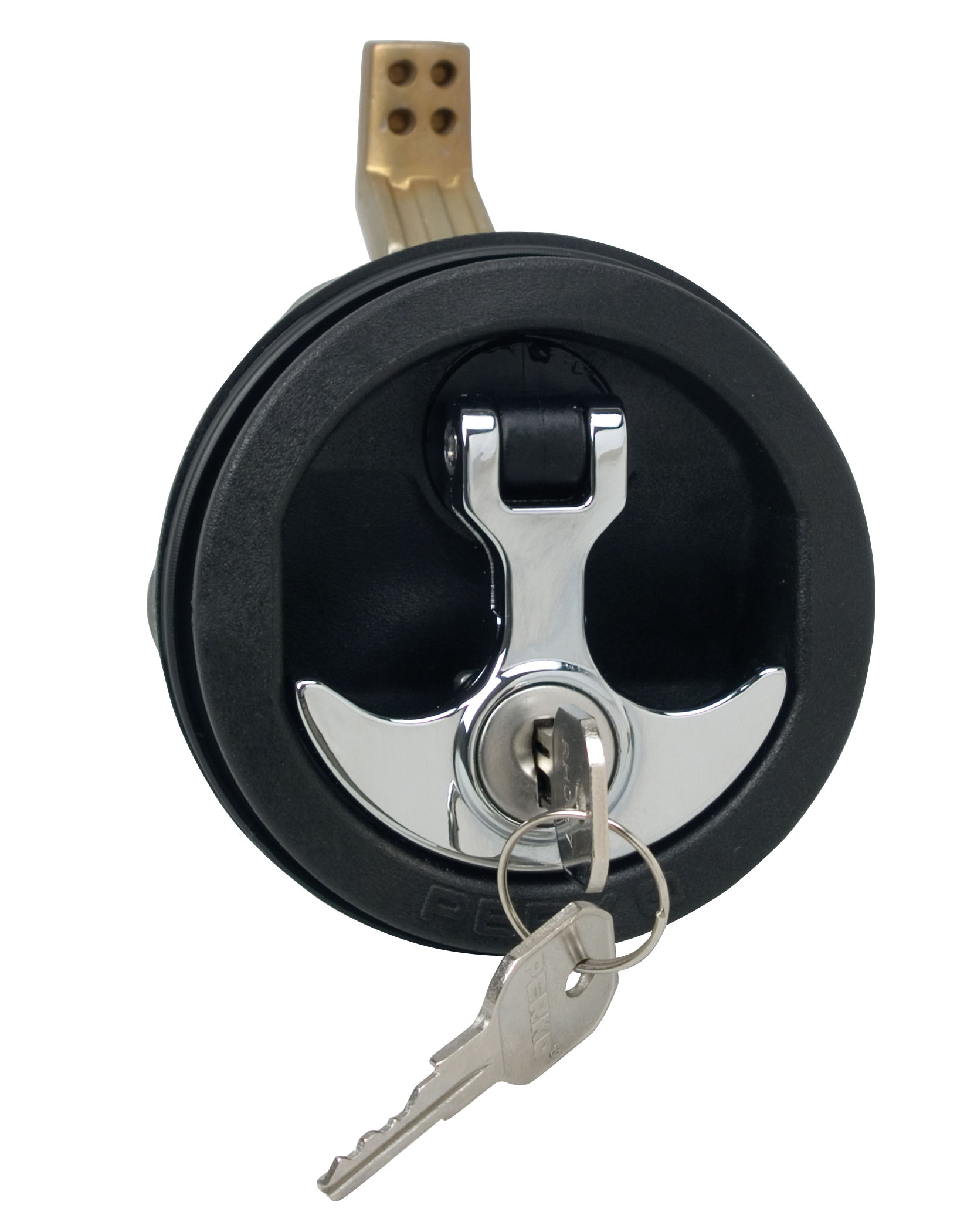

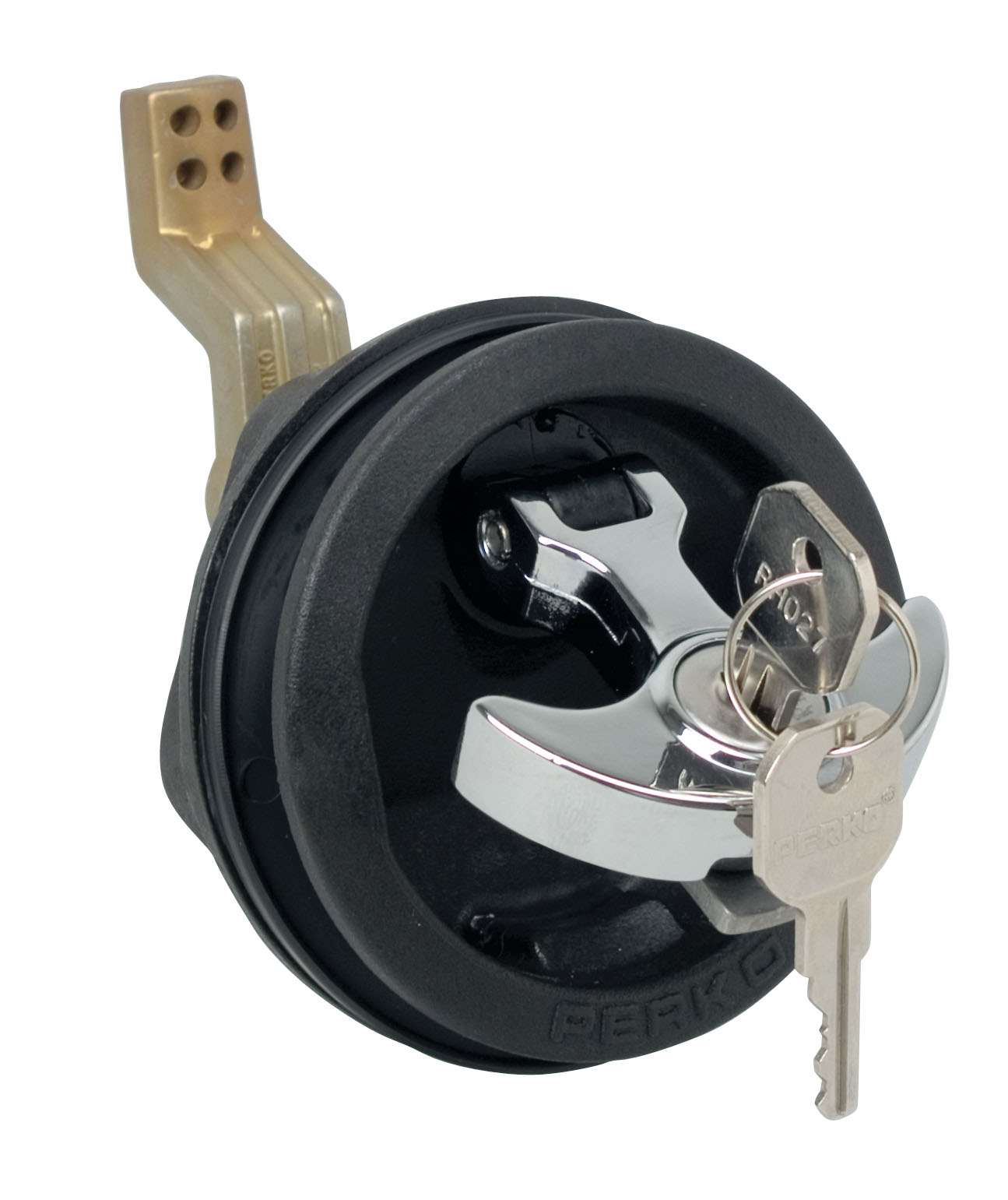

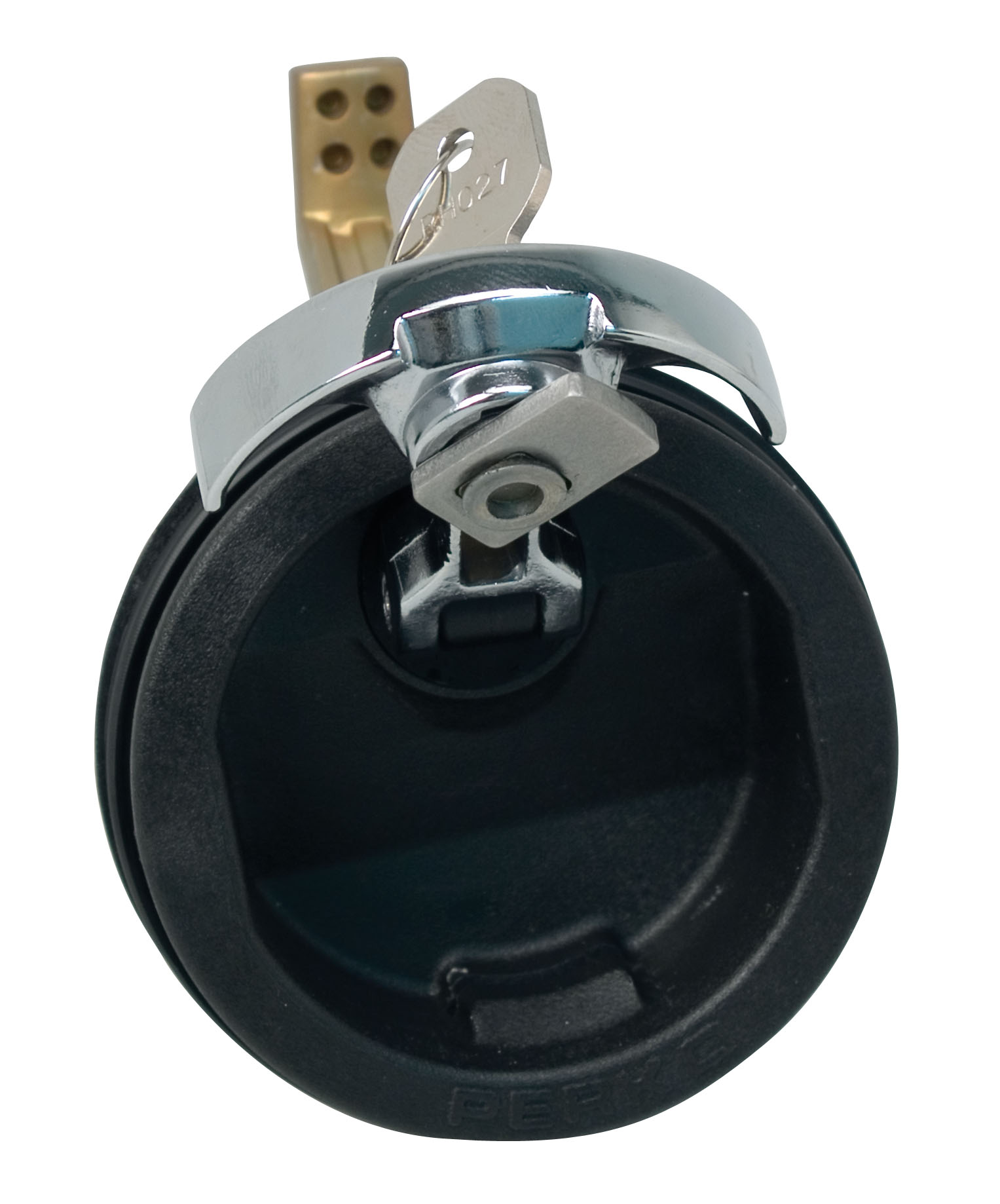

Unsecured valuables have a tendency to walk off by themselves. To keep items safe, Perko offers the 1085 series Surface Mount Lock. Perfect for hatches and storage compartments, the lock is ideal for use on both smooth and carpeted surfaces.
Whether replacing an existing lock handle or upgrading from a non-locking system, the surface mount units are quick and easy to install. Our instructions are clearly illustrated and come with a handy cutout template.
The attractive and sturdy lock is available with a choice of a black, white or gray polymer body with a chrome-plated, zinc alloy "T" handle and a stainless steel stem. To fit any application, various models are available featuring different configurations and lengths of cam bars.
Designed to be mounted through surfaces from 1/8" to 3/4" thick, the lock requires a 2-1/2" cutout hole. The cam bars are adjustable to a maximum 3" from the mounting surface.
Cam Bar Options
Offset Cam Bar: 109100188A
Straight Cam Bar: 109100388A
Extra Long Offset Cam Bar: 109100488A
Extra Long Straight Cam Bar: 109100588A
Extra Long Offset Cam Bar: 109100688A
Slam Cam Bar with Emergency Hatch Release: 10750007CHR
|Body Color||Adjustment Cam Bar Inches||OEM Bulk Pkg. 25 Pcs.||Dealer Pkg. - 5 Cards 1 Pc. per Card||Ship Wt. Carton Lbs. OEM Bulk/DP|
|Black||3/4 to 2-3/8||1085001BLK||1085DP1BLK||14.8/3.8|
|Black||1-1/4 to 1-7/8||1085003BLK||1085DP3BLK||15.7/4.0|
|Black||1/2 to 3||1085004BLK||1085DP4BLK||17.0/4.2|
|Black||1-1/4 to 2||1085005BLK||1085DP5BLK||17.4/4.0|
|Black||1-1/8 to 2||1085006BLK||1085DP6BLK||17.4/4.1|
|Black||See Fig. 1075||1085007BLK||1085DP7BLK||24.0/5.4|
|White||3/4 to 2-3/8||1085001WHT||1085DP1WHT||14.8/4.0|
|White||1-1/4 to 1-7/8||1085003WHT||1085DP3WHT||15.5/4.0|
|White||1/2 to 3||1085004WHT||1085DP4WHT||17.4/4.2|
|White||1-1/4 to 2||1085005WHT||1085DP5WHT||17.4/4.0|
|White||1-1/8 to 2||1085006WHT||1085DP6WHT||17.4/4.1|
|White||See Fig. 1075||1085007WHT||1085DP7WHT||24.0/5.4|
|Gray||3/4 to 2-3/8||1085001GRY||----------||14.8/---|
|Gray||1-1/4 to 1-7/8||1085003GRY ( Legacy)||----------||13.8/---|
|Gray||1/2 to 3||1085004GRY ( Legacy)||----------||14.9/---|
|Gray||1-1/4 to 2||1085005GRY ( Legacy)||----------||14.9/---|
|Gray||1-1/8 to 2||1085006GRY ( Legacy)||----------||14.9/---|
|Gray||See Fig. 1075||1085007GRY ( Legacy)||----------||21.4/---|
