Figure No: 1269

Category: Fuel System Components

View in Print Catalog

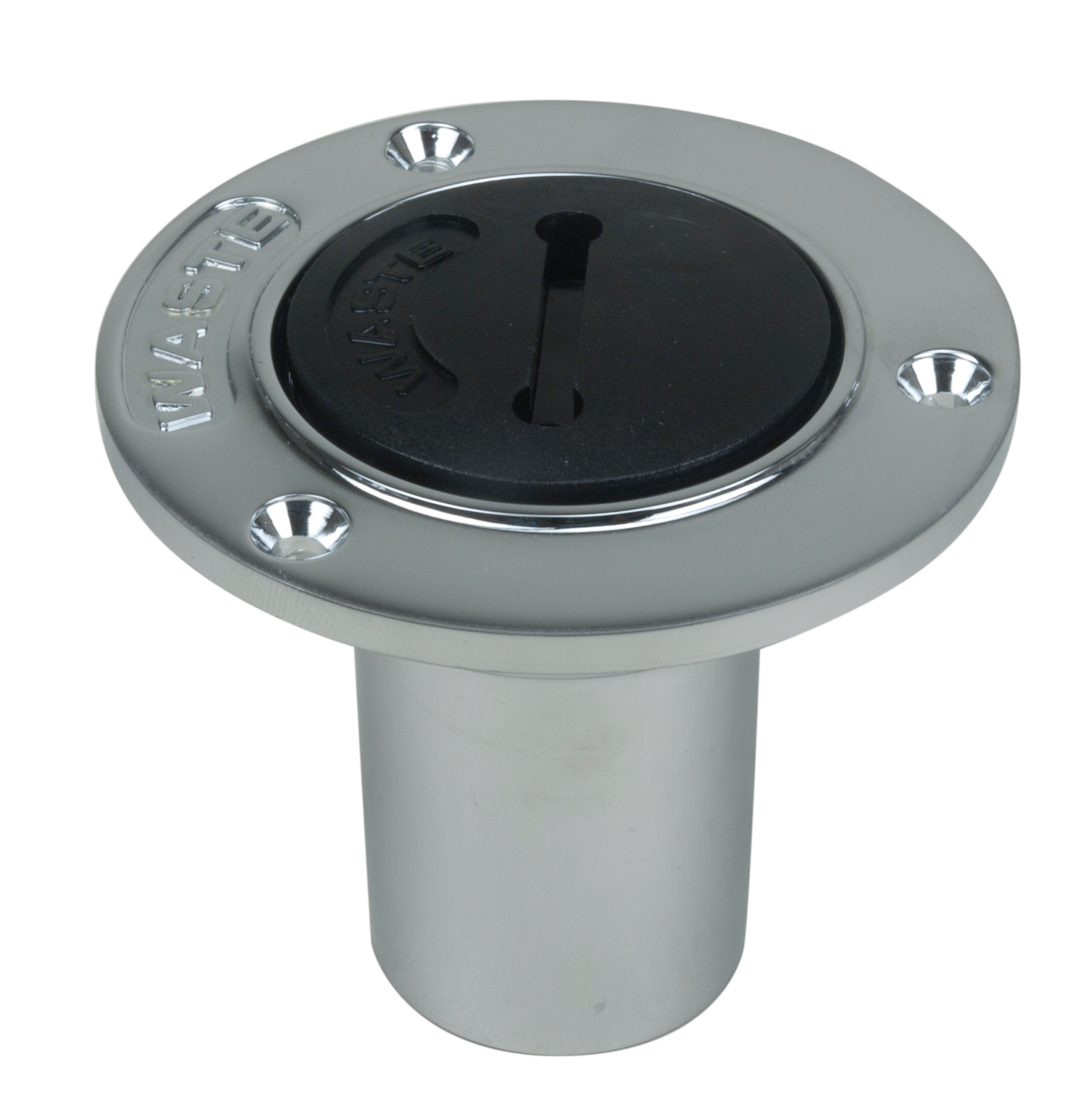

Waste Deck Plate for Hose Waste Deck Plate for Hose [Fig. No. 1269]
Product Description

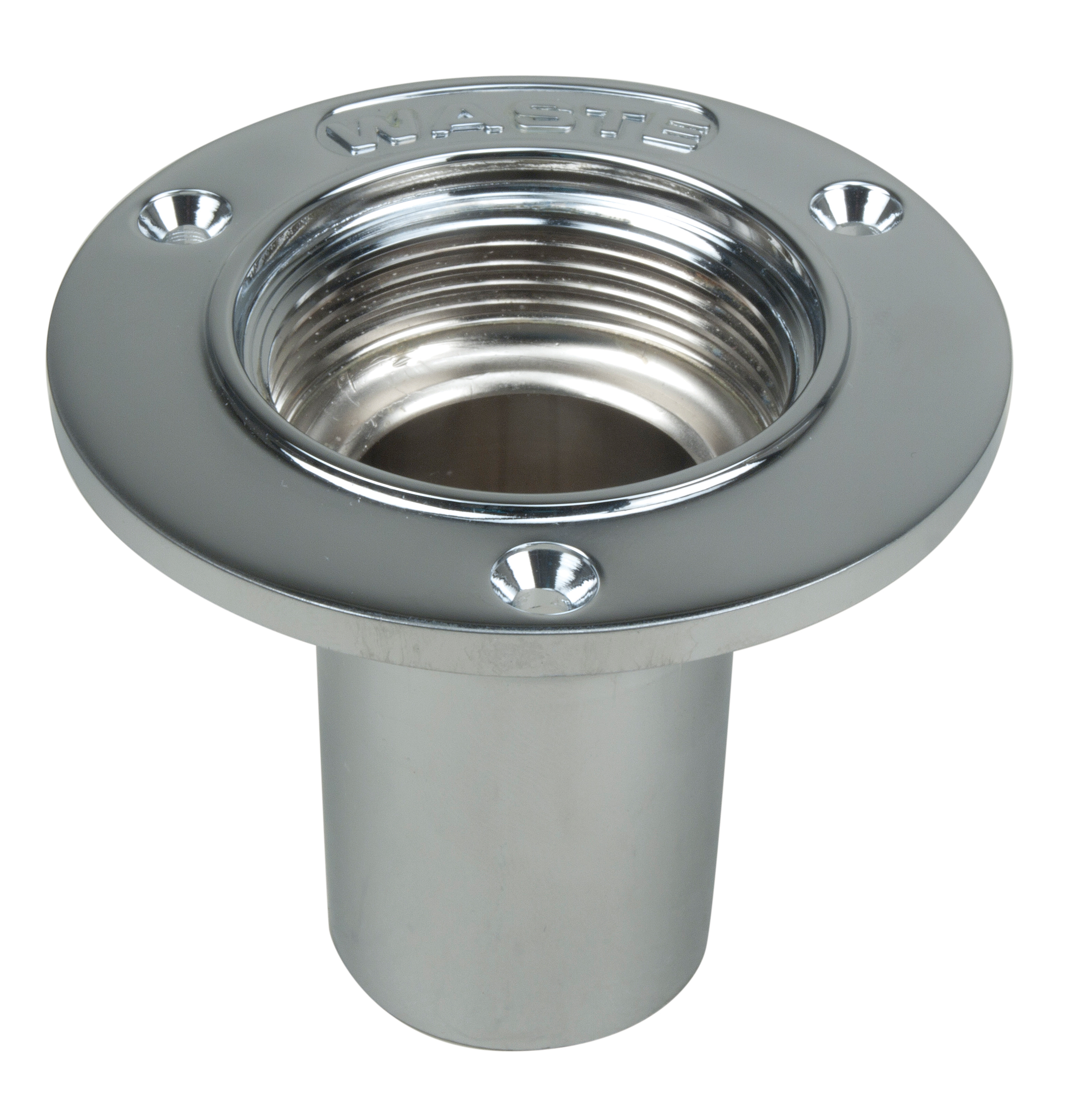

    • Chrome Plated Zinc Alloy

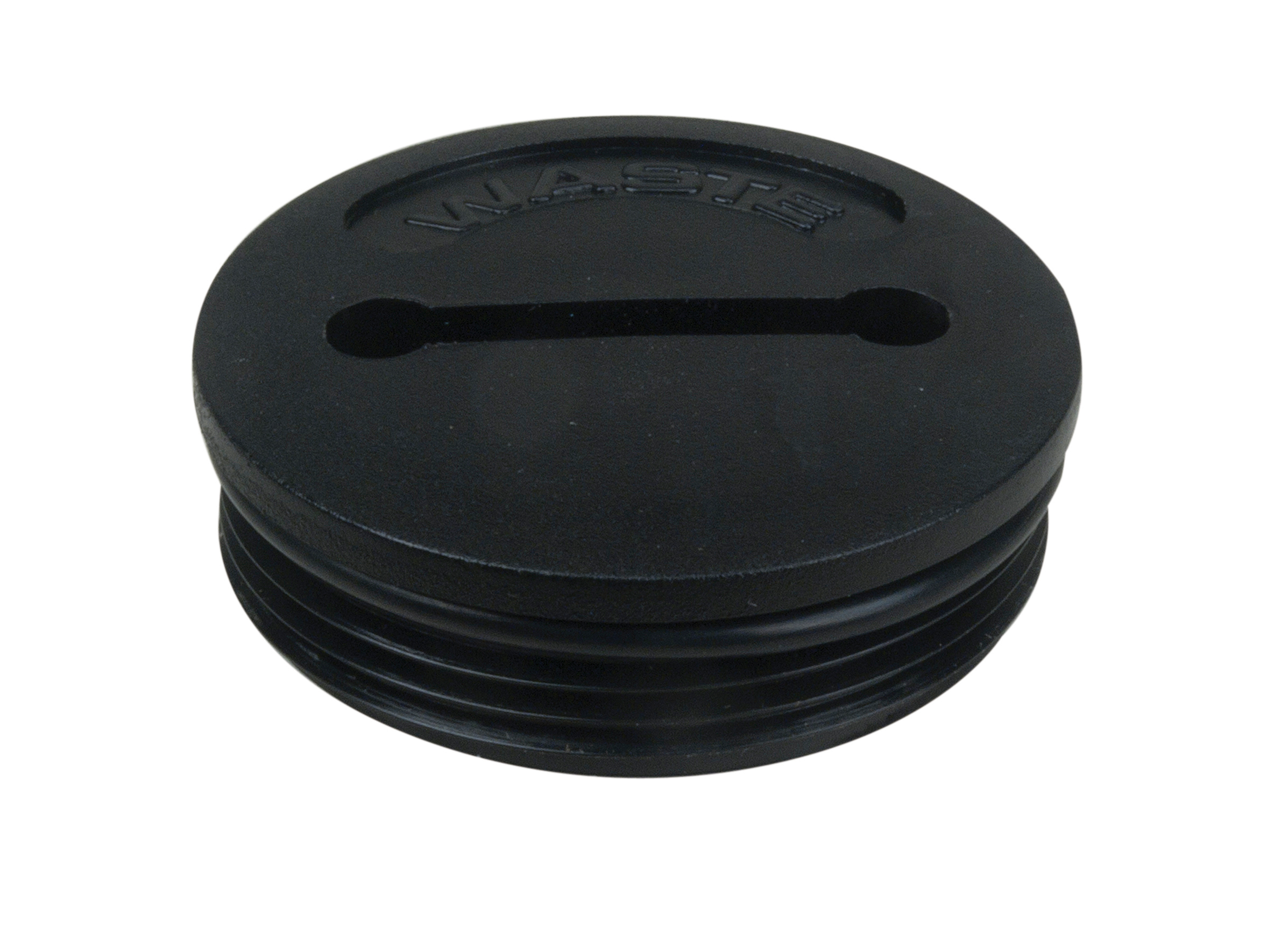

    • Black Polymer Cap

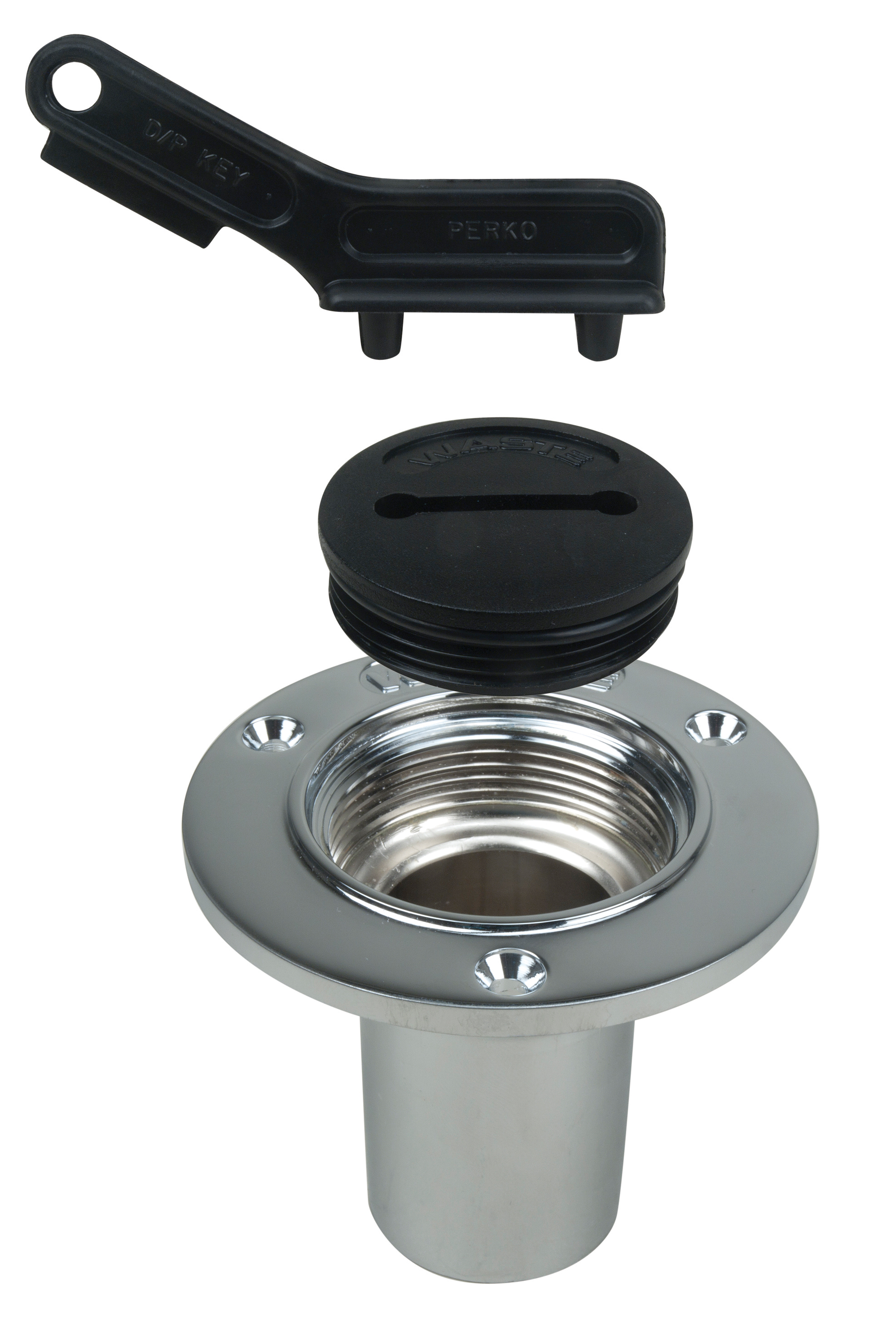

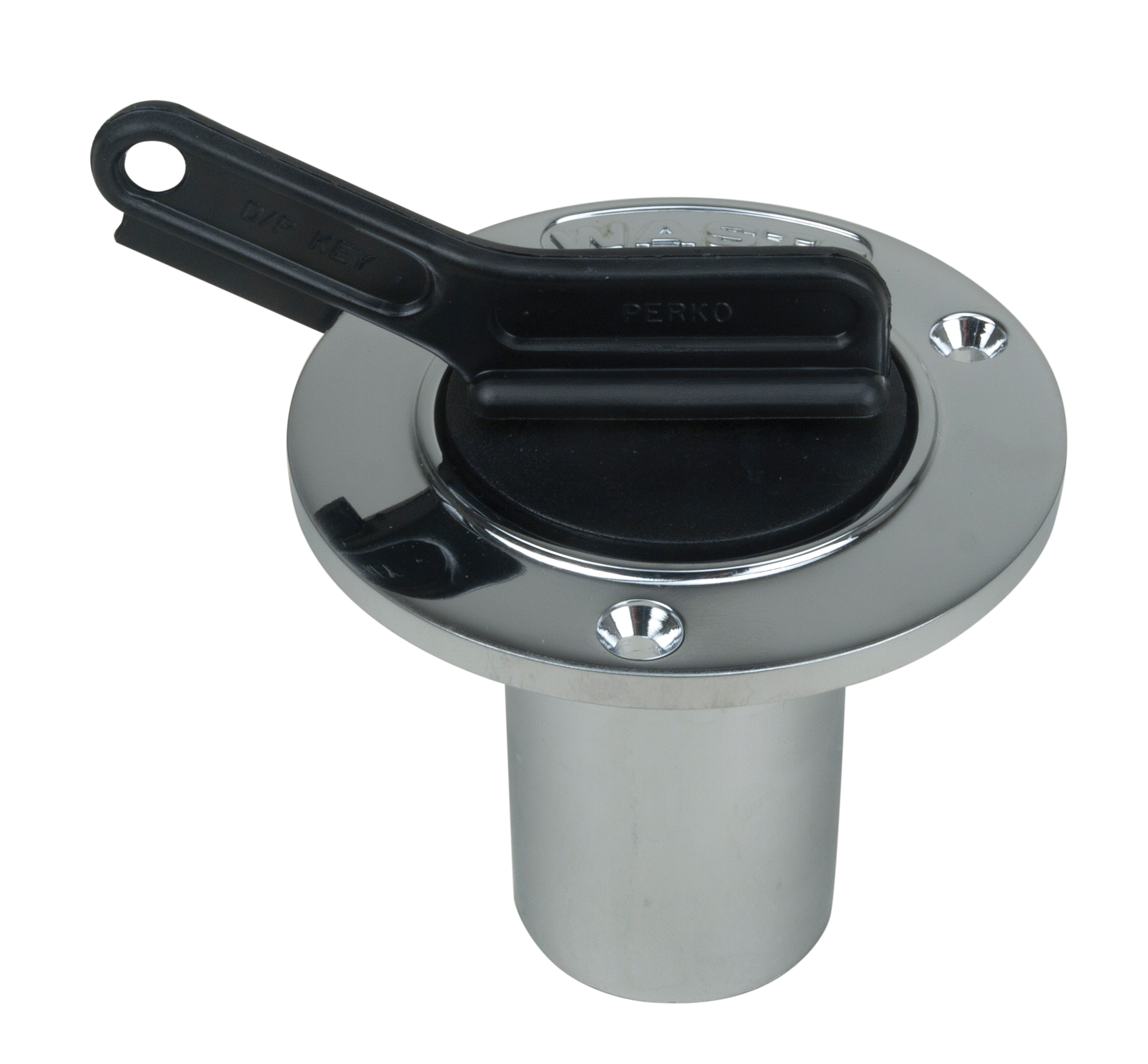

    • Deck Plate Key and O-Ring Included
    • Cap has a slot between the holes
Technical Information
  • For Hose Size: 1-1/2"
  • O.D. Flange: 3-1/8"
  • Length of Neck: 3-1/2"
  • Mounting Hole Diameter: 2-1/8"
  • Screw Size: #8
Ordering Information
Dealer Pkg. 5 Cards 1 Pc. per Card OEM Bulk Pkg. 25 Pcs. Ship Wt. Carton Lbs. DP/OEM Bulk
1269DP0CHR 1269000CHR 3.9/18.0
Instructions & Resources
View in Print Catalog View Fig. 1269 in our Print Catalog
Product Notes
NOTE: Figs. 1269 Comply with Adopted Standards on "Fittings" A.B.Y.C. Recommended Practices Standards Covering Sewage Holding and/or Treatment Devices for Marine Waste Systems.
Spare Parts

Cap with O-Ring: 1269DP099A

O-Rings Only (2 per bag): 0513DP8
Certifications

No certifications are associated with this product

Have a Question?

Still have a question about the Figure No. 1269 Waste Deck Plate for Hose that wasn't answered on this page? Contact us!
