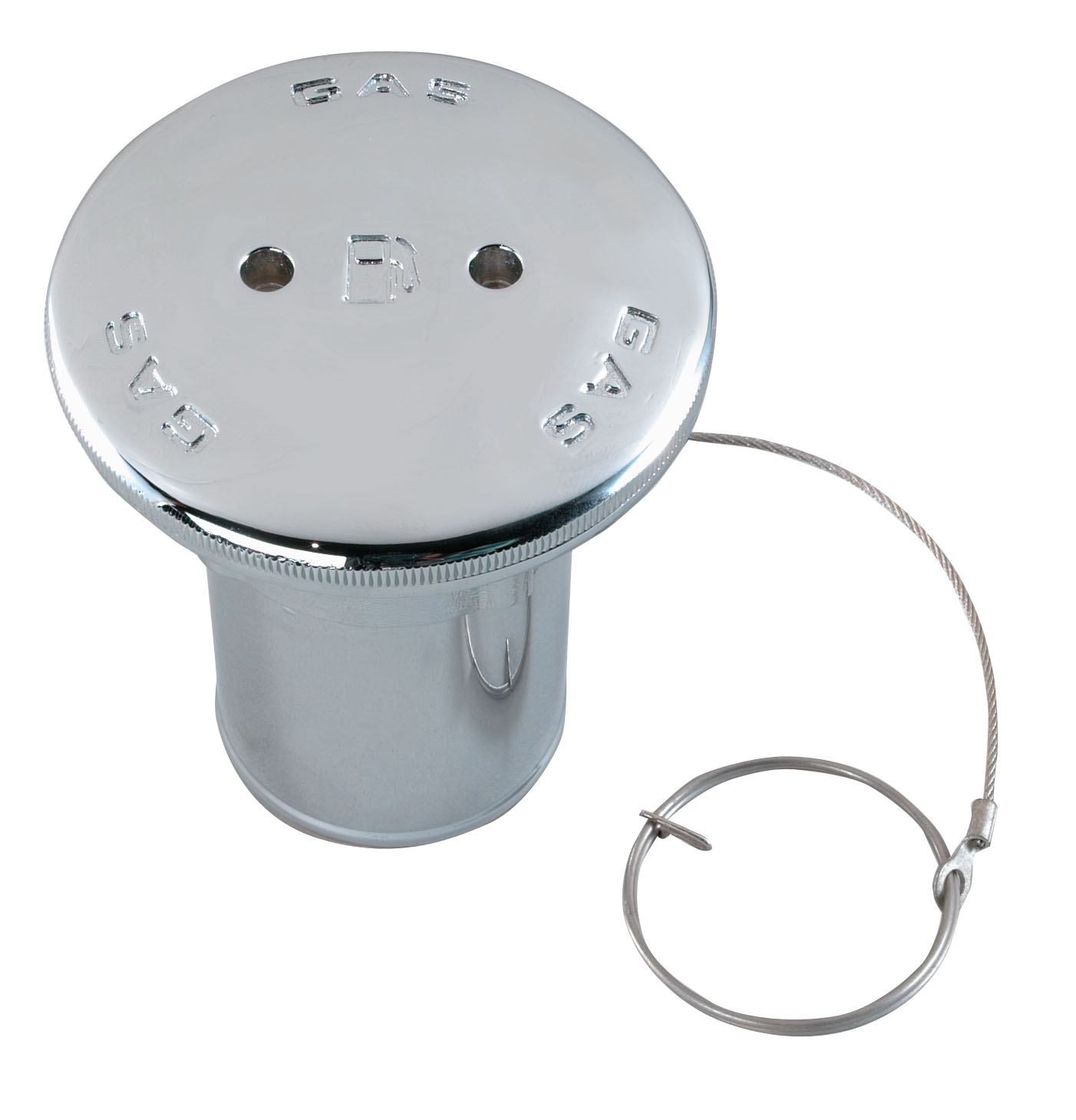

Fuel Fill for 2" Hose

Product Description
    • Chrome Plated Bronze
    • Straight Neck
    • Non Vented
    • O-Ring and Retainer on Cap Included
    • Ground Wire Required
Technical Information
  • For Hose Size: 2"
  • O.D. Flange: 3-3/8"
  • Neck Length : 3-5/8"
  • Mounting Hole Diameter: 2-1/4"
  • Screw Size: #8
Ordering Information
Marked For Std. Pkg. 1 Pc. Ship Wt. Carton Lbs. Std. Pkg.
Gas 0576G00CHR* 1.2
Diesel 0576D00CHR 1.2
Instructions & Resources
View in Print Catalog View 0576 in our Print Catalog
Product Notes
*NOTE: These Items Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183. Fills shown on this page DO NOT meet the requirements for 40 CFR 1060 sub part B Emissions Standards and Related Requirements.
Spare Parts

Gas Cap & O-Ring: 0576DPG99A

Diesel Cap & O-Ring: 0576DPD99A

Retaining Ring: 0537DP2
