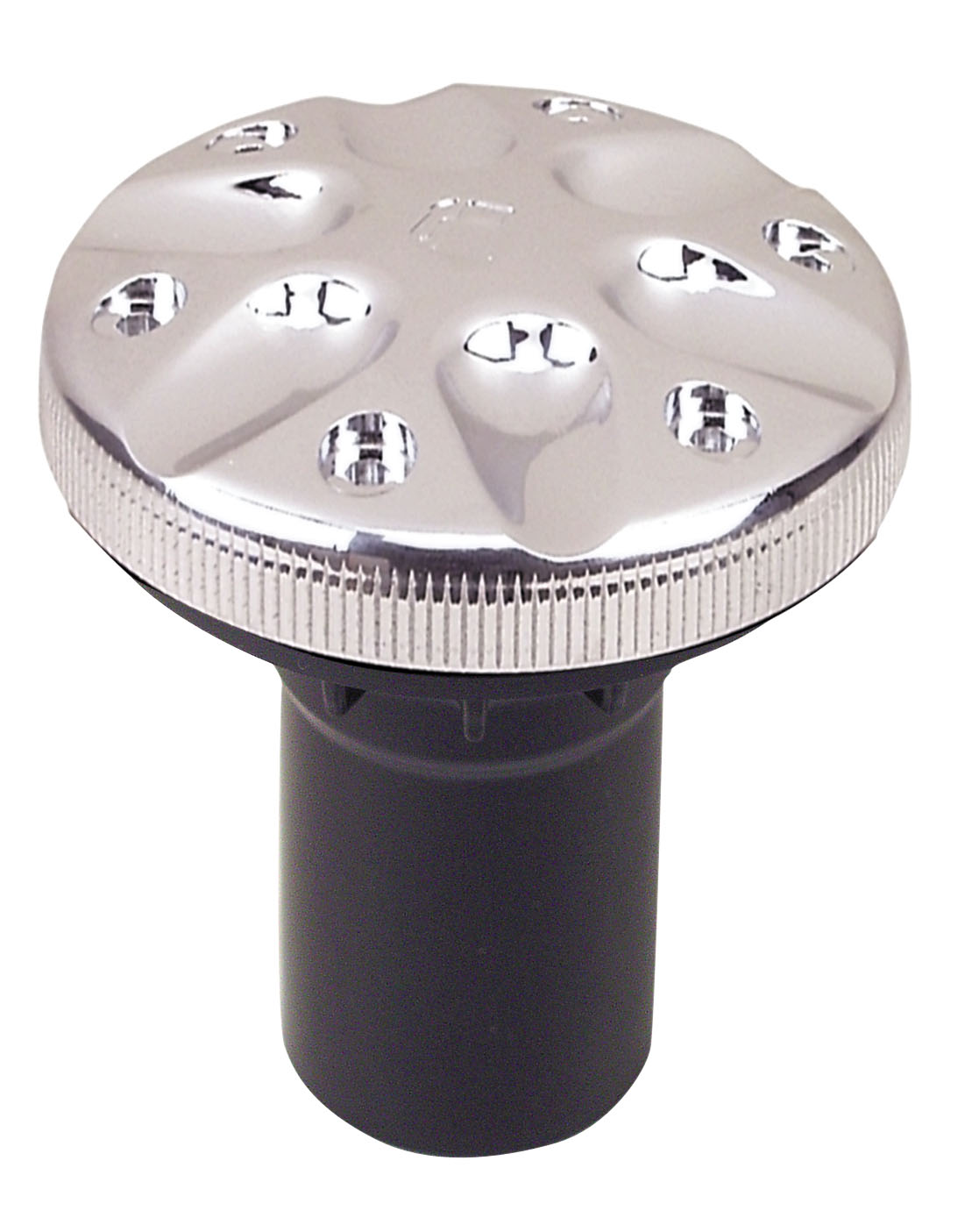

Fuel & Water Fills for 1-1/2" Hose [Fig. No. 0564]
Chrome Plated Bronze Cap & Black Polymer Body
Stainless Steel Bead Chain
*Note: Consider using the Mounting Ring (Fig. 0540DPRBLK) for all installations. DP package includes mounting ring.
For Hose Size: 1-1/2"
O.D. Flange: 3-3/8"
Neck Length: 3-1/8"
Mounting Hole Diameter: 2-1/8"
Screw Size: #8
Mounting Ring for Vented Fills
The use of these heightening rings is required in any application where water might be splashed around a vented fill. The ring raises the opening between the fuel cap and fill an additional 3/8" above the deck surface, thereby reducing the likelihood that splashed water will enter the fuel system through the breathing vent. The split version of the ring is designed for aftermarket use on existing installations. In most cases, it allows the ring to be added without disconnecting fuel and vent hoses from the fill. For new OEM installations, rings are supplied without the split since they can be installed before hoses are connected to the fill.
NOTE: The ring will not prevent water from entering the system if the cap becomes submerged or substantially flooded. If this situation exists, the fill/vent must be moved to a dry location or replaced with a sealed cap and a separate vent located elsewhere.
* NOTE: These Fills Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183. Fills shown on this page DO NOT meet the requirements for 40 CFR 1060 sub part B Emissions Standards and Related Requirements.
NOTE: Consider using the Mounting Ring (Fig. 0540DPRBLK) for all installations. DP package includes mounting ring.
Gas Cap with O-Ring: 0590DPG99A
Water Cap with O-Ring: 0590DPW99A
Diesel Cap with O-Ring: 0590DPD99A
O-Ring Only: 054000099B
