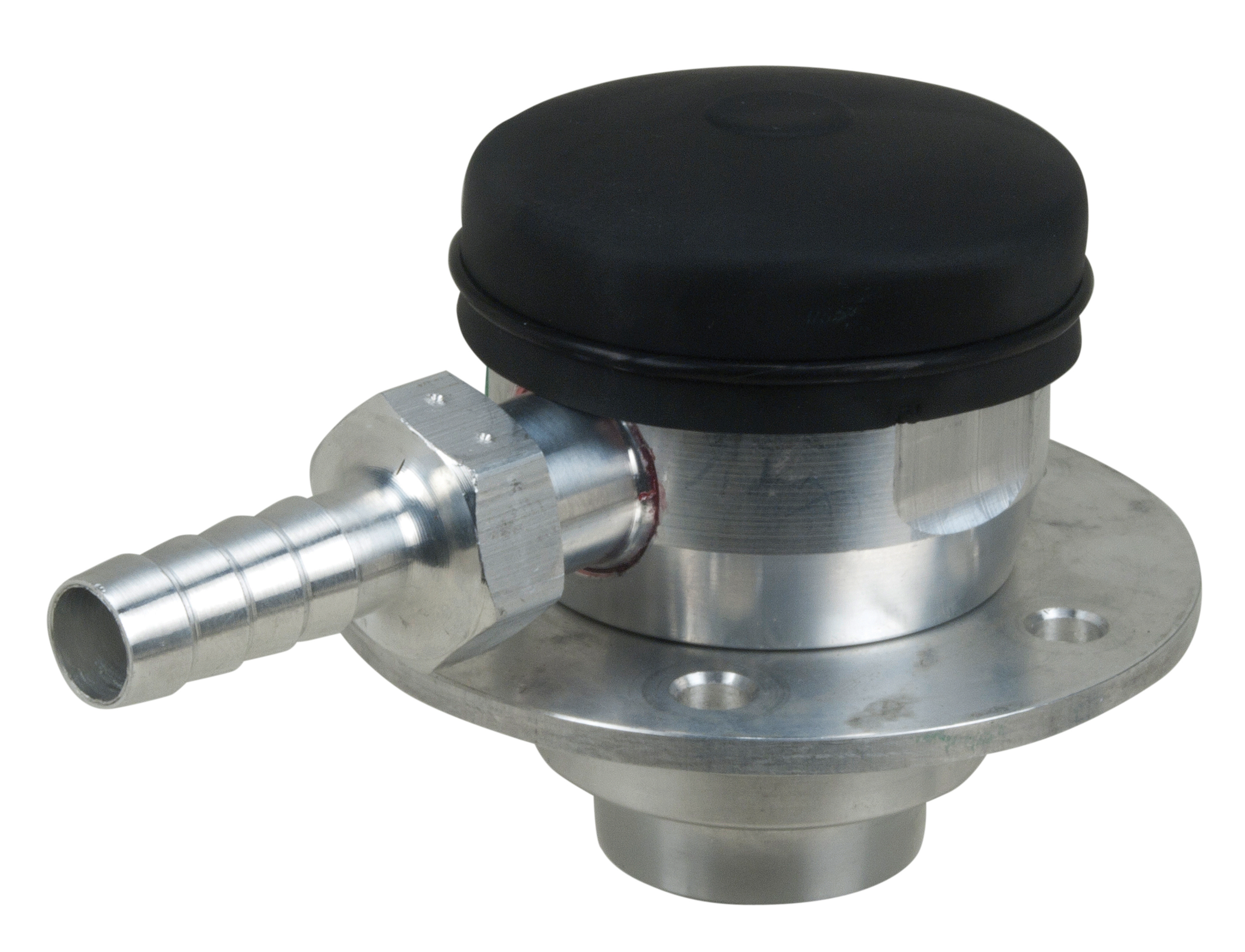

Fuel Demand Valve - Body and Hose Barb Assembly Only [Fig. No. 0463]
- The Perko Fuel Demand Valve is a diaphragm operated valve opening at low vacuum regardless of tank pressure. The valve is available in both flanged and threaded versions.
- Body and Hose Barb assembly only.
- Complete assembly or pick-up adapter only configurations are available.
- Aluminum housing and barbs
- Viton seals
- Meets A.B.Y.C. H-24 Fire Test
- Pressure release button - No tools needed to pressurize engine feed line during pressure test. Easy button removal to provide visual indication of test completion.
- Anti-siphon Protection - For line drops of 12" maximum. Custom drop distances available.
- Handles high tank pressure - Seals to pressures in excess of 5psi.
- Opens at low vacuum - Valve opens at minus 3/4 psi (approx) regardless of internal tank pressure.
- Max Flow Rate - Up to 88 gal/hr.
- SAE Bolt Circle - Bolts & gaskets are common with flanged level senders. Easy to tool & install for tank builders.
- Swivel head - Reduces clocking issues and facilitates boat builder plumbing.
- Small tank footprint - 1/2" NPTF tank connection or
- Low profile - 1" NPTF.
- Easy to install. Receiver not included.
|Body Only Catalog No. OEM Bulk Pkg. 10 Pcs.||Style||Length (Inches)||Width (Inches)||Projection Above Tank (Inches)||Hose Connections||Tank Connection||Shipping Weight Lbs.|
|0463F0B038||Flanged||2-1/4||4-1/4||1-1/4||3/8||SAE 5 Bolt||3.8|
|0463F0B012||Flanged||2-1/4||4-1/4||1-1/4||1/2||SAE 5 Bolt||3.8|
Instructions & Resources
Do you still have a question about the Figure No. 0463 Fuel Demand Valve - Body and Hose Barb Assembly Only that wasn't answered on this page? Contact us! View Contact Information
