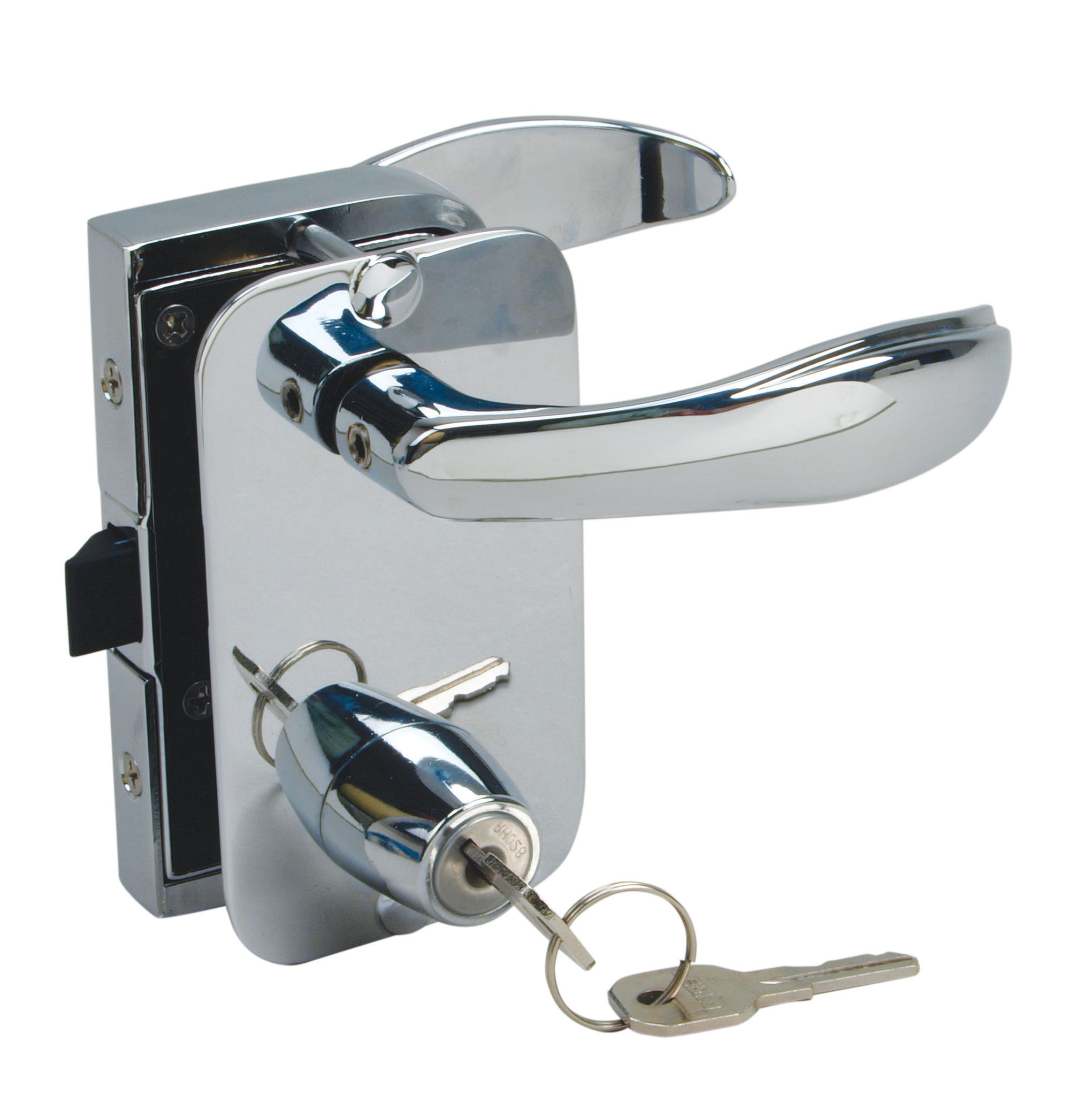

Full Size Surface Mount Lock Set With Privacy Lock

Product Description
    • Chrome Plated Brass and Zinc Alloy Components
    • Keyed lock from outside
    • Interior turn button lock mechanism from inside
Technical Information
  • Overall Height: 5-1/4"
  • For Door Thickness 1-1/16" to 1-3/8" - for any other door thickness or other "hands", consult factory for availability
Determining the Hand of a Lock or Latch Set

When standing outside if the door opens away from you, you need a lock or latch with a regular bevel.

If the door opens towards you, you need a lock or latch with a reverse bevel.


NOTE: The privacy latch handle should be mounted on the door's interior side.


  1. Lock/Latch Type - LEFT INWARD - Regular Bevel
  2. Lock/Latch Type - LEFT OUTWARD - Reverse Bevel
  3. Lock/Latch Type - RIGHT INWARD - Regular Bevel
  4. Lock/Latch Type - RIGHT OUTWARD - Reverse Bevel
Lock Latch Diagram Lock Latch Diagram
Ordering Information
Type For Door Thickness Inches Standard Pkg. 1 Set Type Of Lock/Latch Ship Wt. Carton Lbs. Standard Pkg.
Lock 1-1/16 0716001ROC Right Outward 1.5
Lock 1-1/8 0716002ROC Right Outward 1.5
Lock 1-3/8 0716003ROC Right Outward 1.5
Instructions & Resources
View in Print Catalog View 0716 in our Print Catalog
