Figure No: 9621

Single Battery Disconnect Switch [Fig. No. 9621]

Three mounting options for the Perko Single Battery Disconnect Switch

Product Description

The Perko Single Battery Disconnect Switch permits the battery to be shut off from the electrical system when the vessel is not in use. They can also serve as an emergency main disconnect switch in the event of an electrical problem.

The Single Battery Disconnect Switch is ignition protected.

Ideal for: Tenders, Skiffs, Flats Boats, Inflatables or Small Boats

Mounts On: Consoles, Lockers, Storage Bulkheads, Interior Gunnel Walls or Under Bench Seats

Three mounting options

Panel mount with backing plate - Face plate flush mounts on surface.
Bulkhead mount with mounting legs - Allows for direct cable access.
Cup mount - Attractive, durable easy open/close cover that hides and protects switch face.

Materials & Finish

Red polycarbonate polymer body
Black polymer actuator key
Nickel plated terminals

Features

Small compact size
Unique oval shape mounts in a round hole

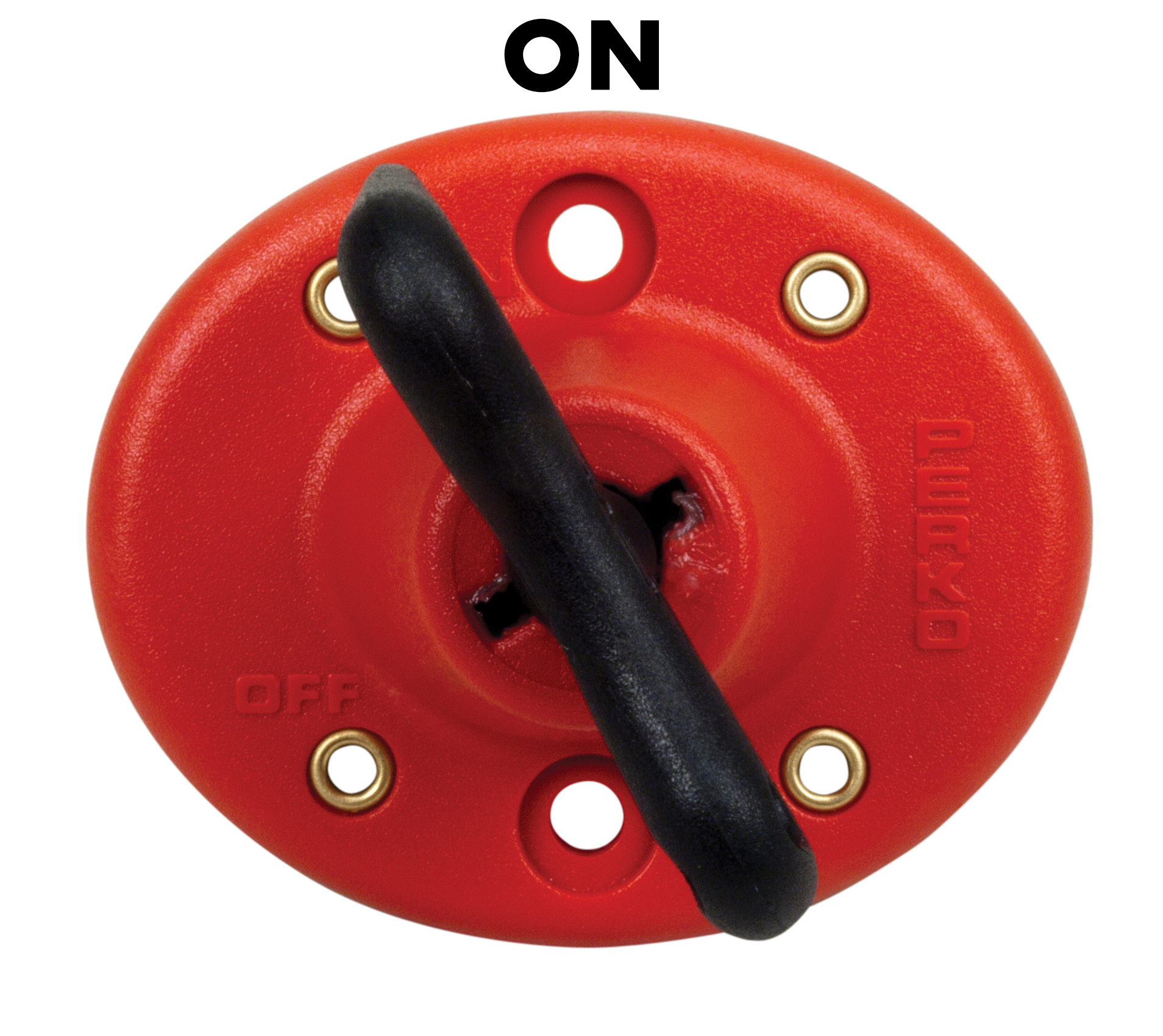

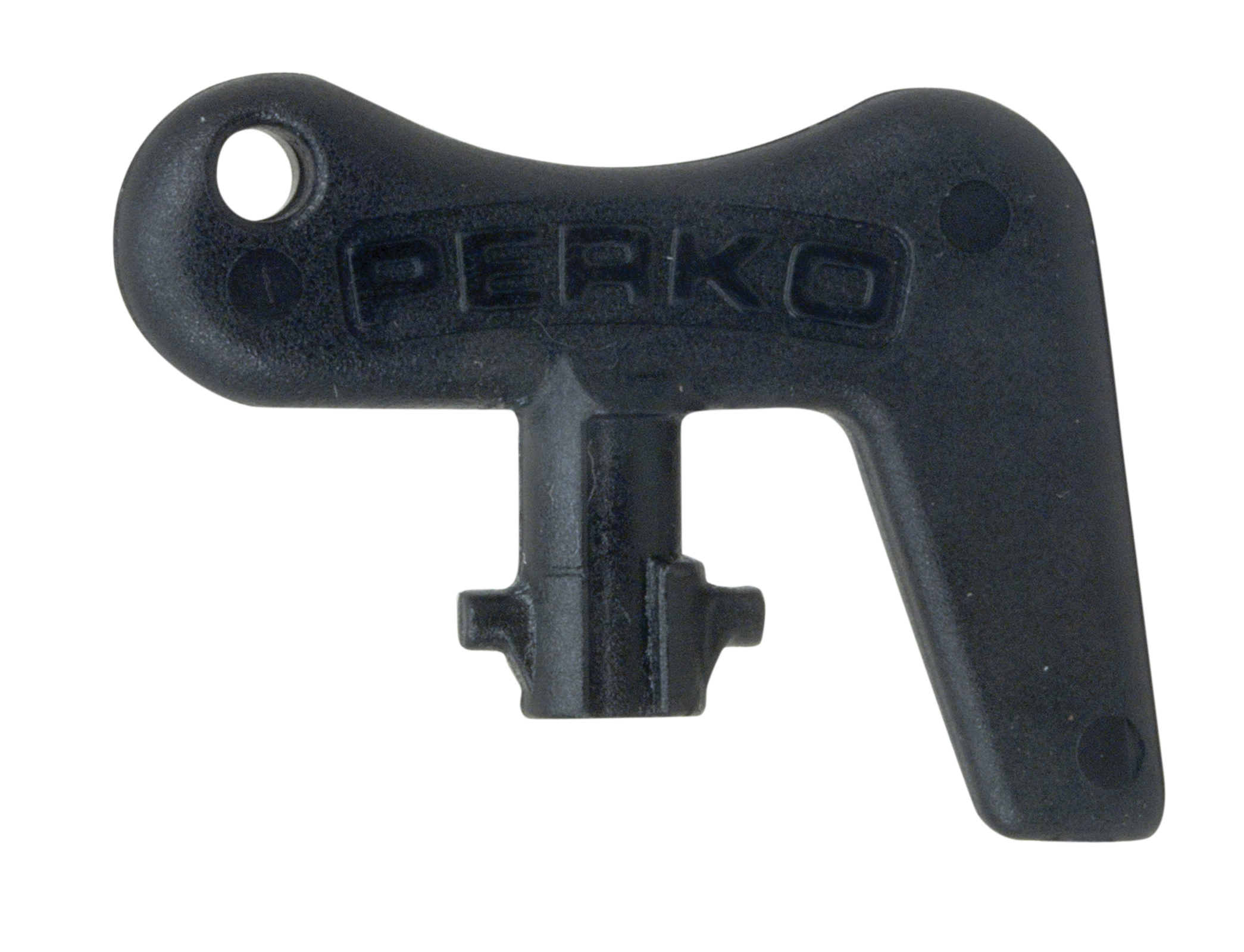

Removable actuator key adds additional security

Technical Information

For use with alternators and generators 6-50 V.D.C. Marine Electrical Systems
Rating: 140 Amps Continuous, 200 Amps 5 Min. Intermittent, 250 Amps 30 Second Start
Panel Mount Installation Hole Size: 2-1/8"
Cup Mount Installation Hole Size: 3"
Cup Diameter Size: 3-1/2"
Face Dimensions: 3" x 2-1/2"
Ignition Protected

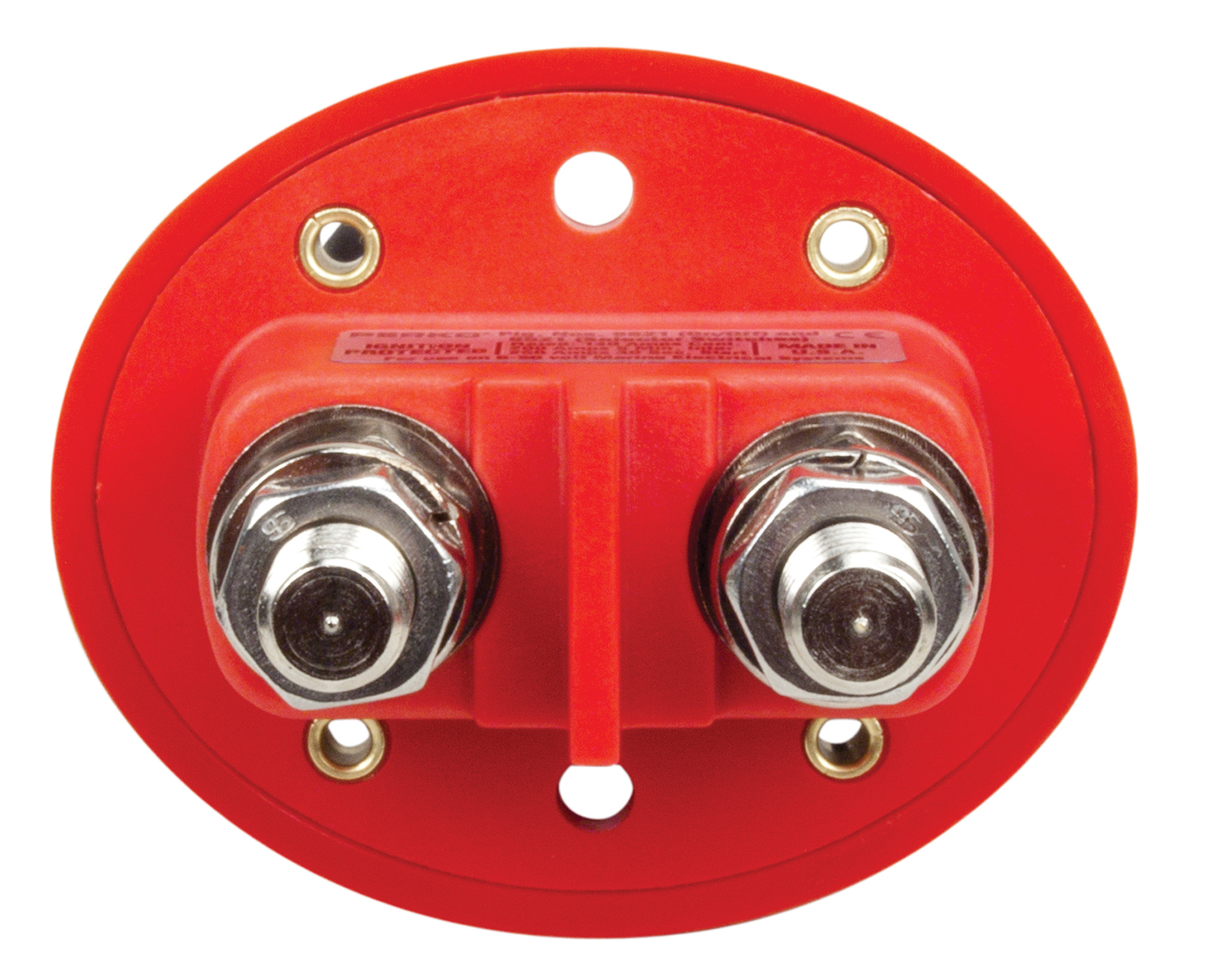

Terminal Stud Size: 3/8"
Screw Size: #10

Three Mounting Options

Perko's Single Battery Disconnect Switch comes with three different mounting options.

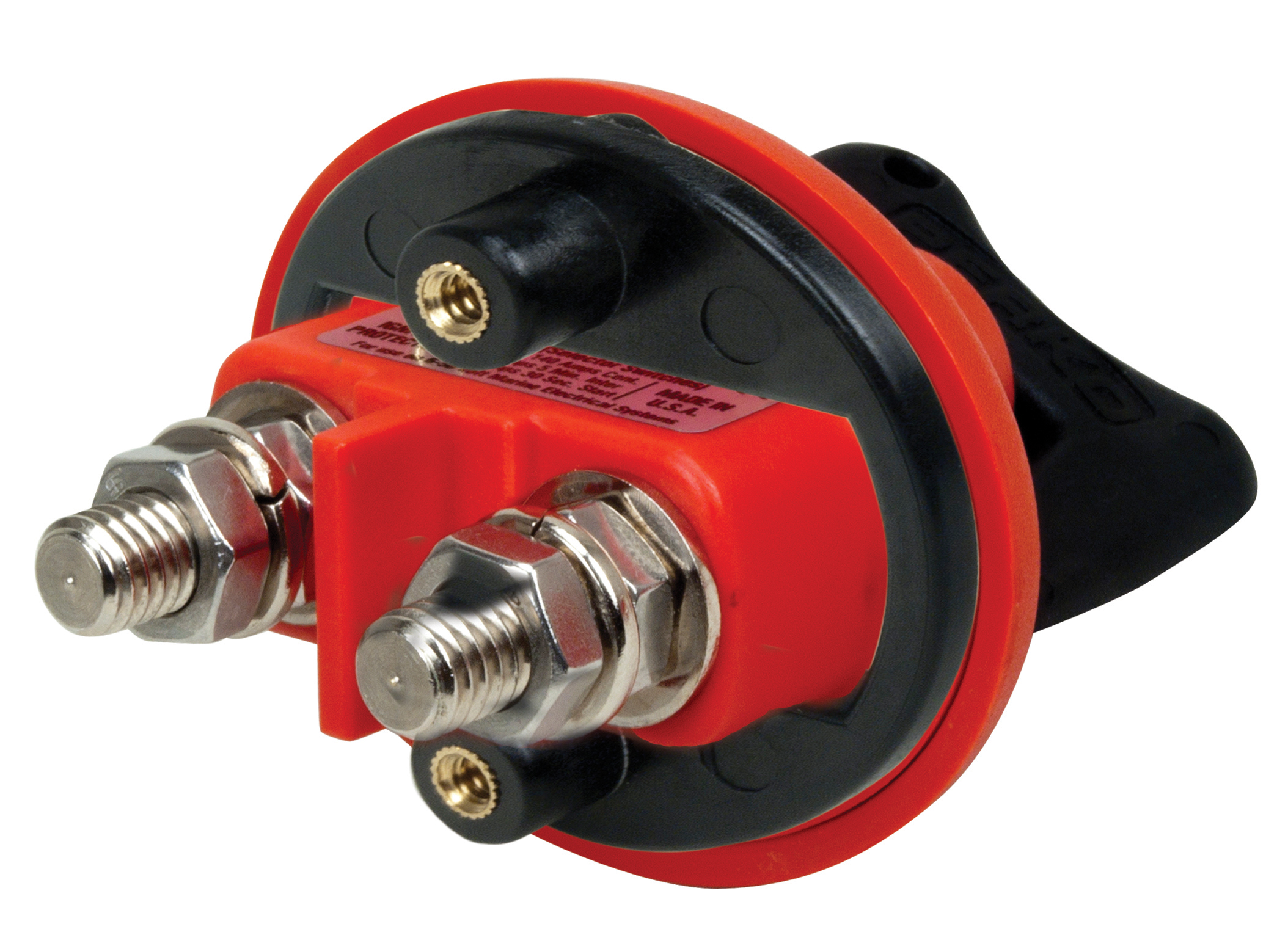

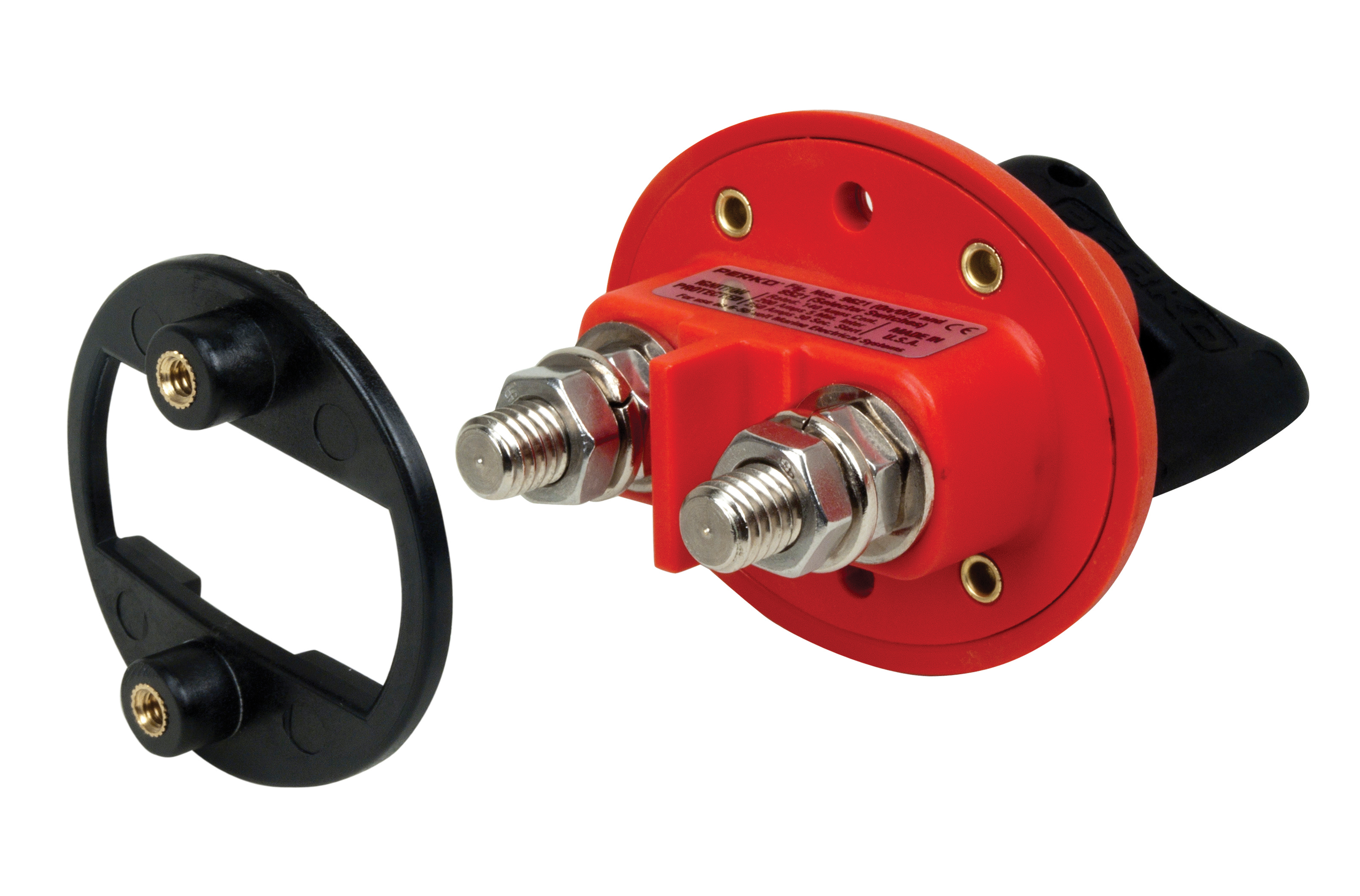

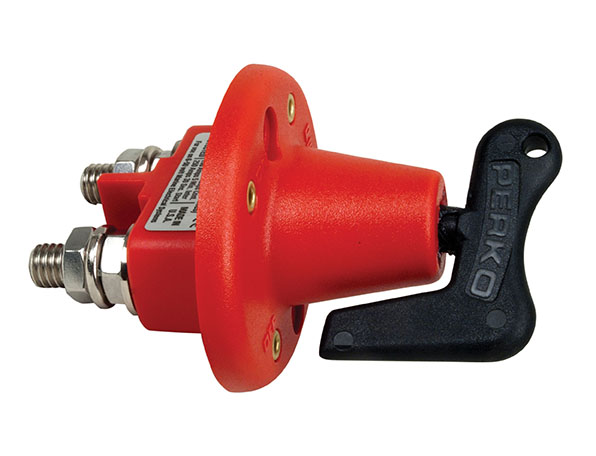

The first mounting option is a panel mount with a backing plate. The backing plate mounts flush on the surface. A installation hole size of 2-1/8" is required for this option.

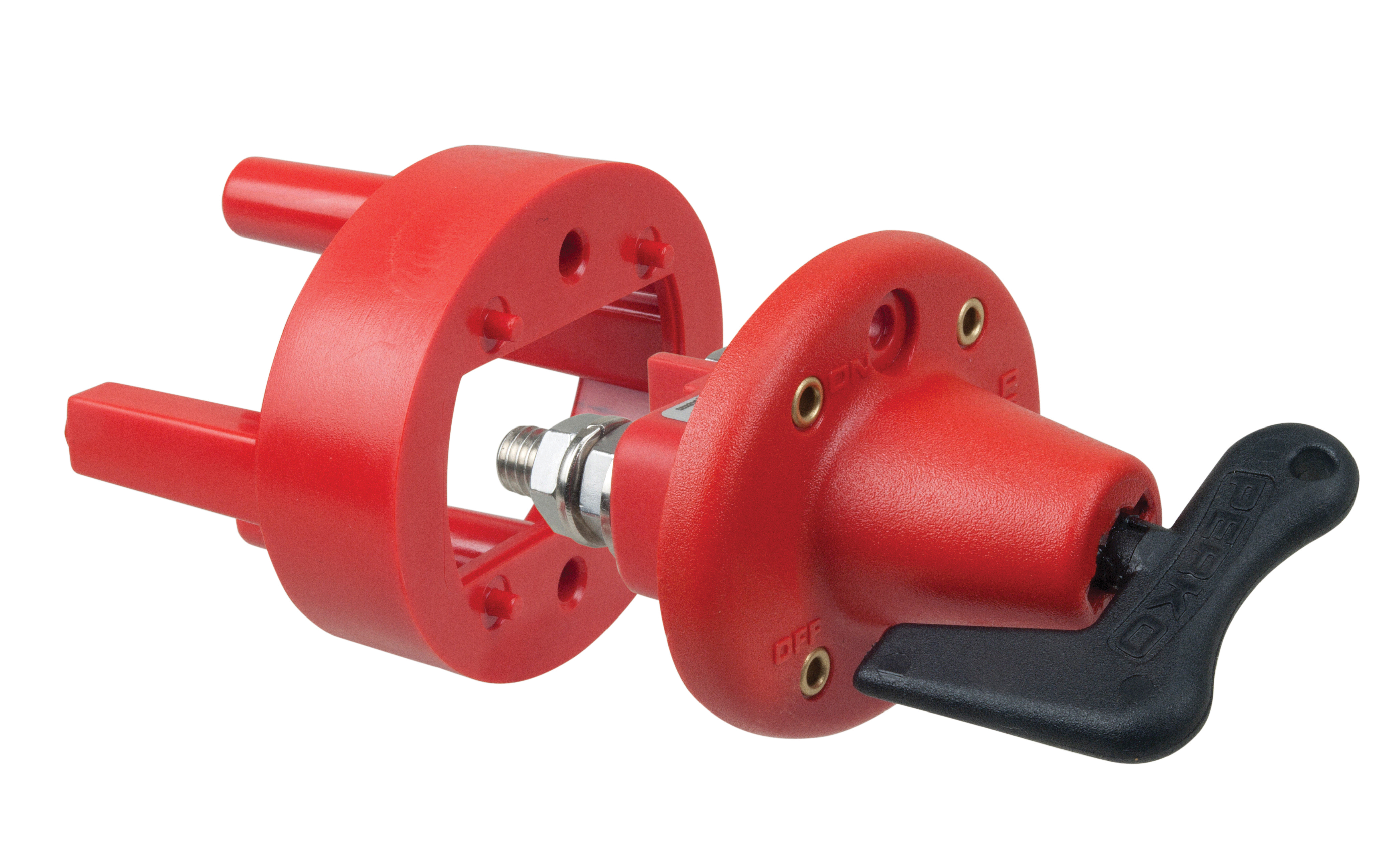

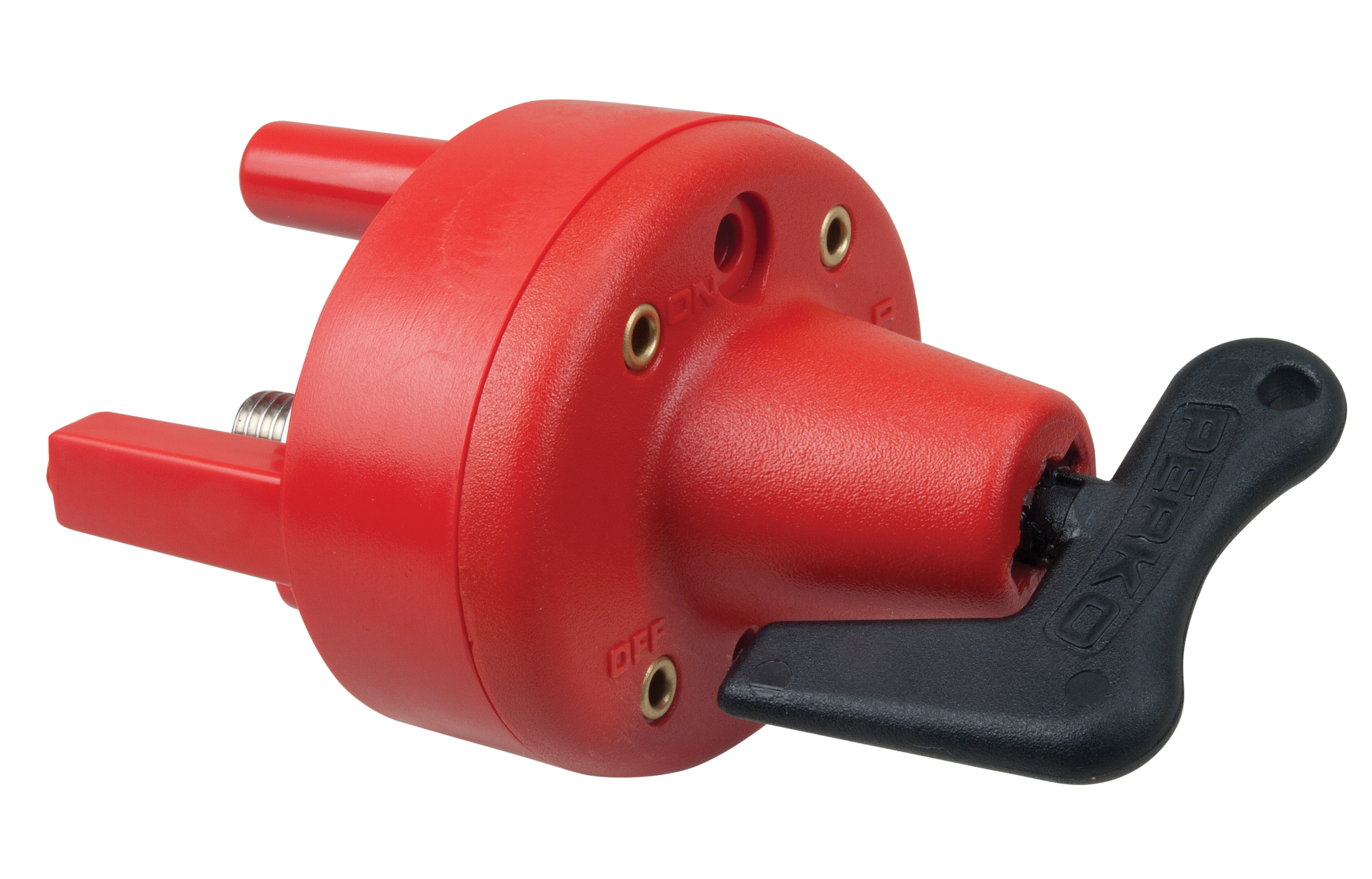

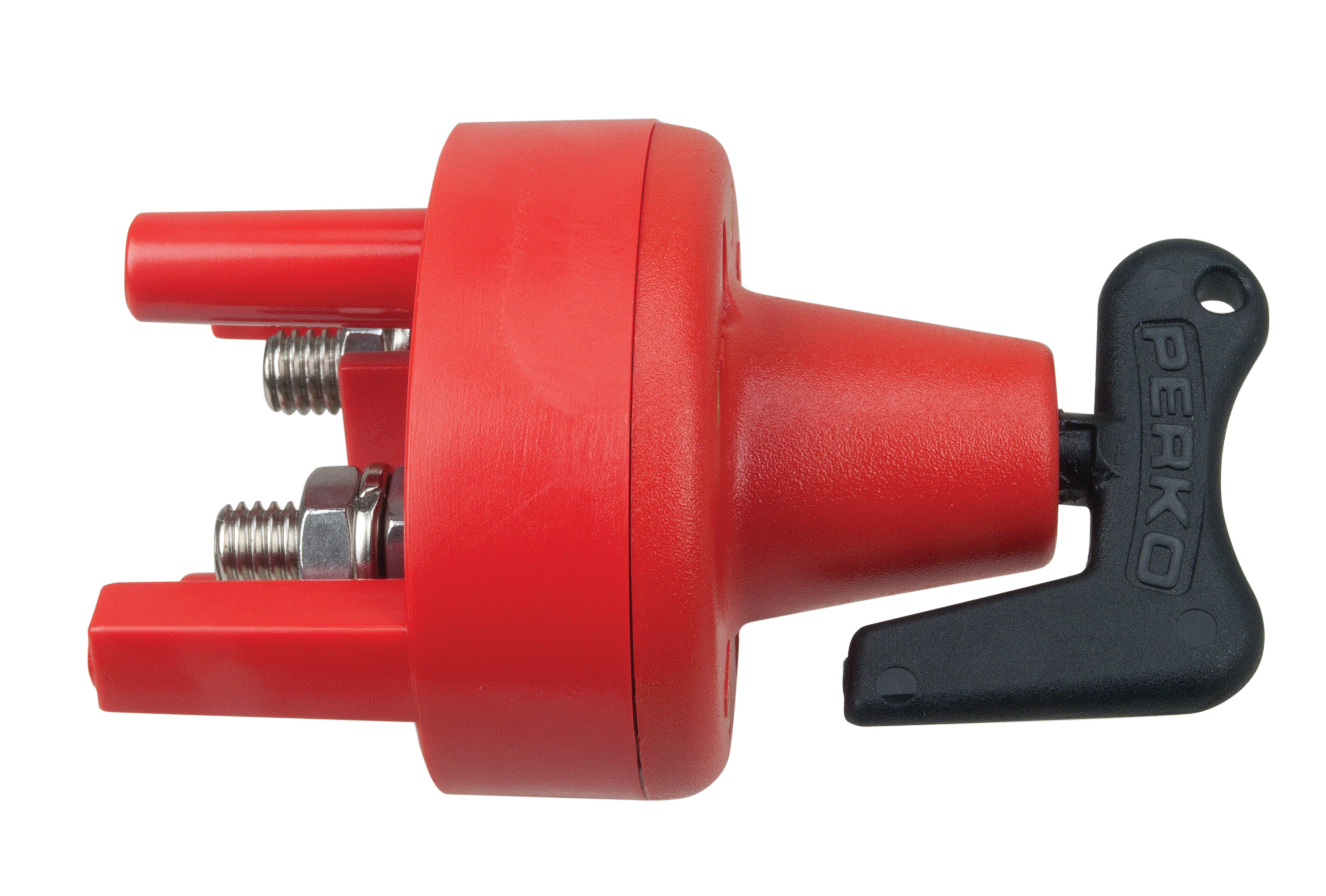

The second mounting option is a bulkhead mount with mounting legs. This option creates a space that allows for direct cable access. No mounting hole is required for this option.

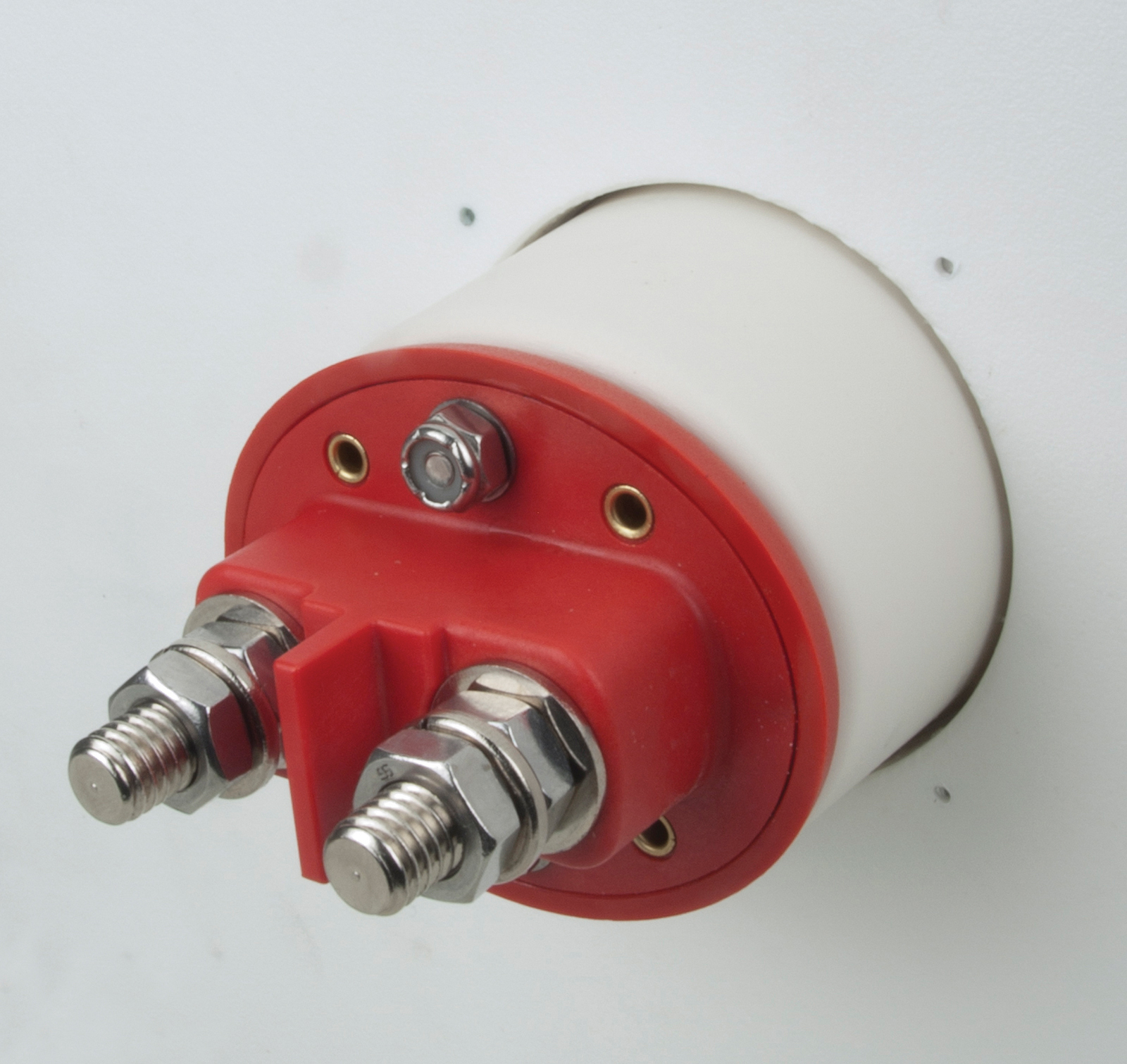

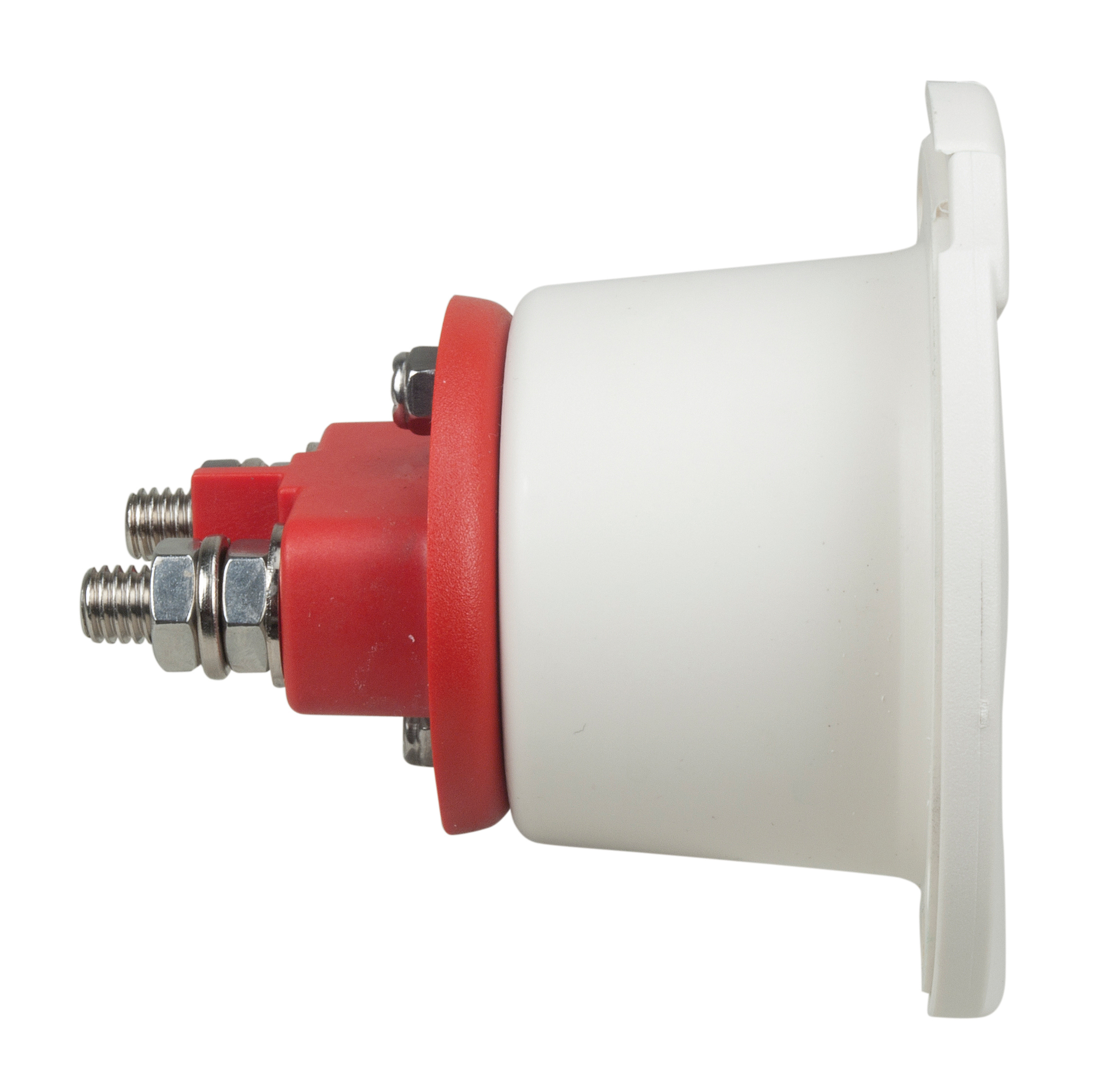

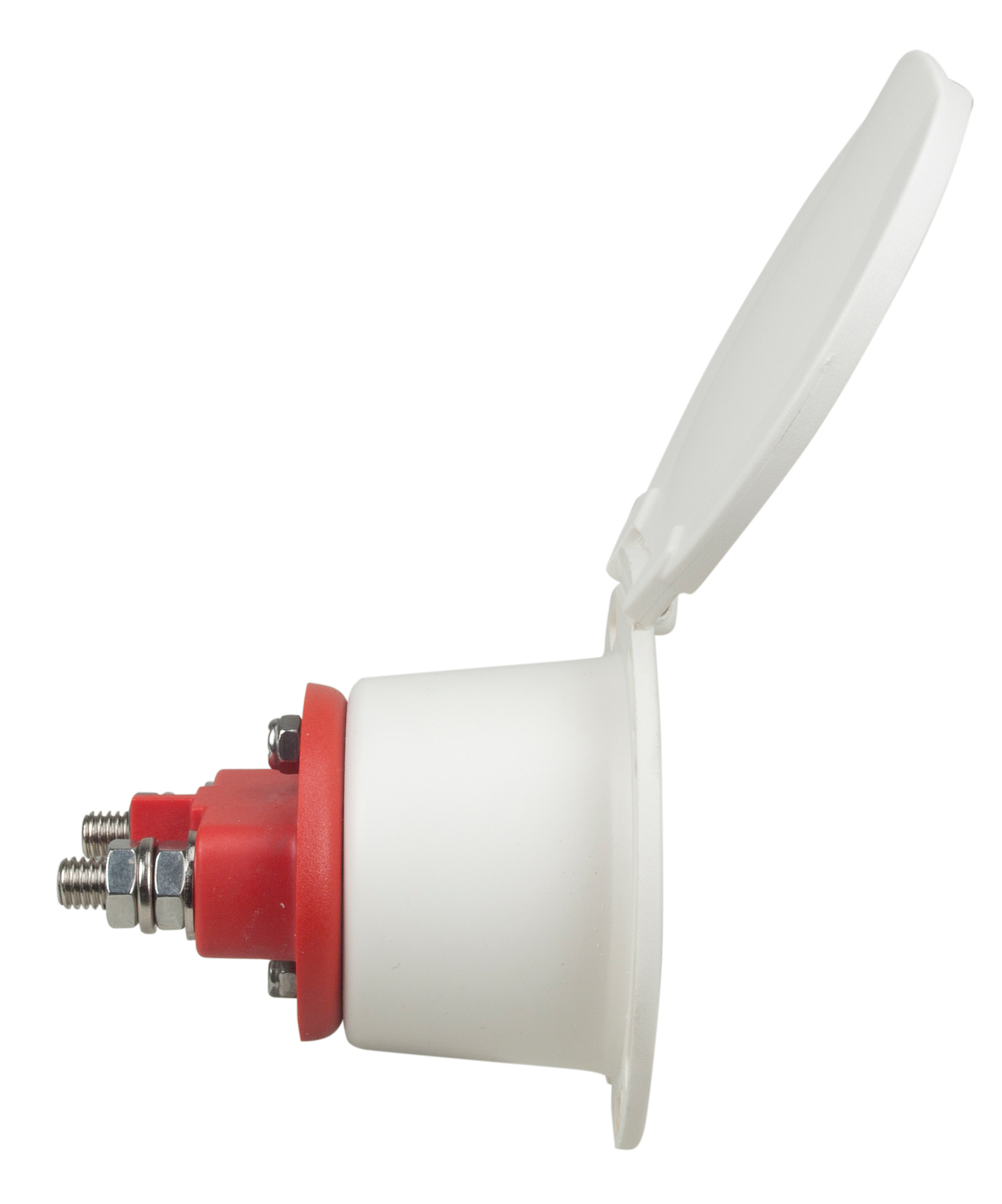

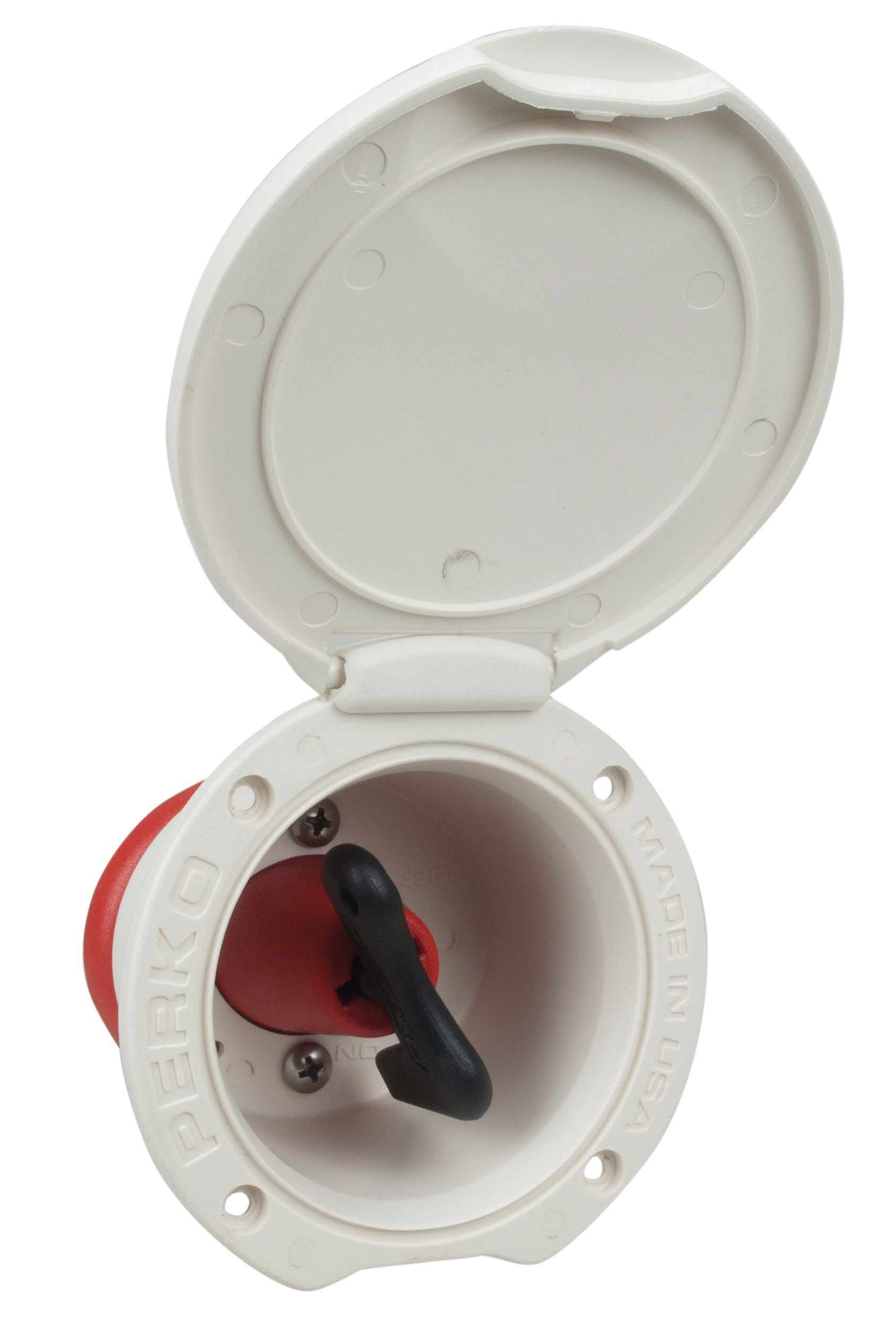

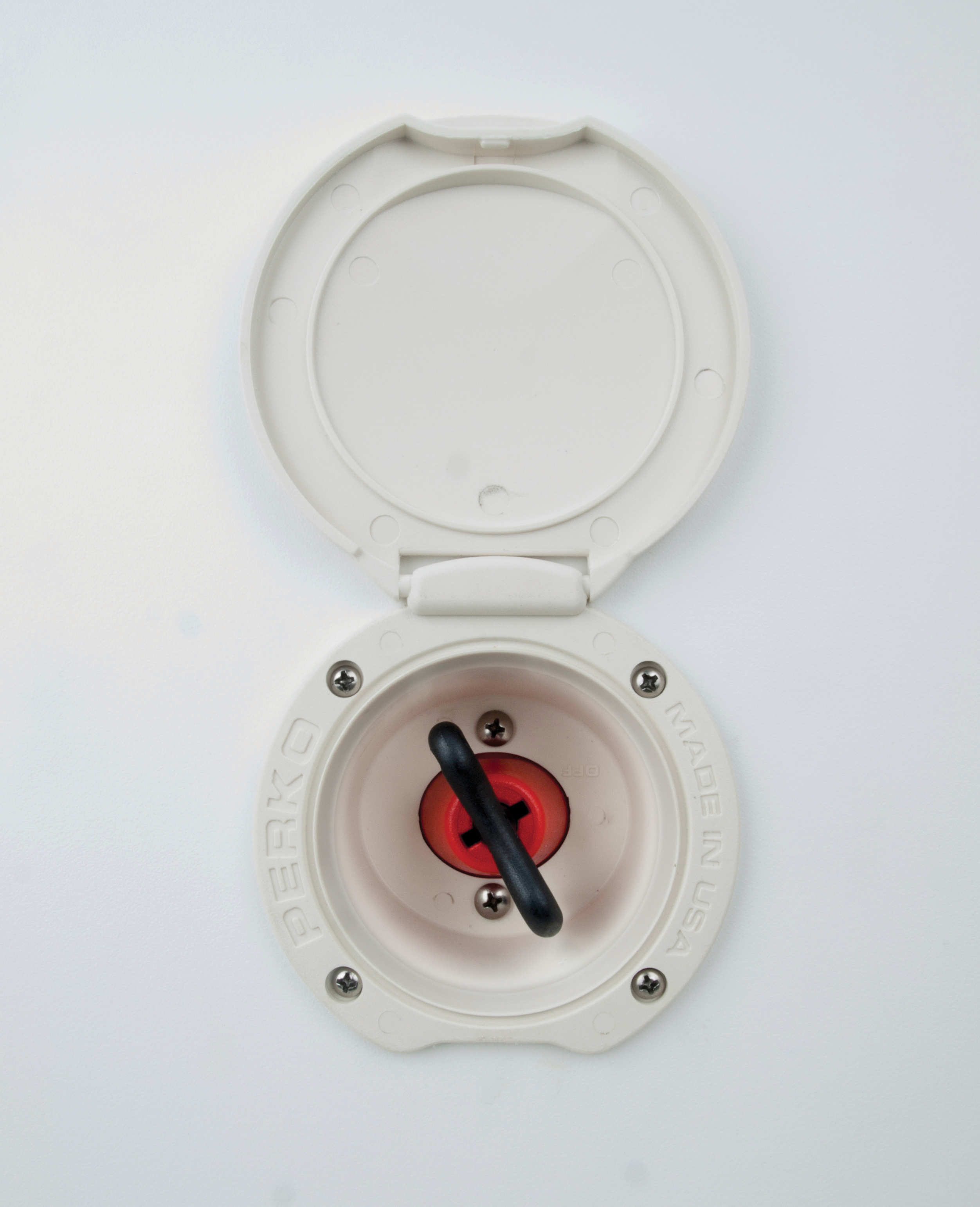

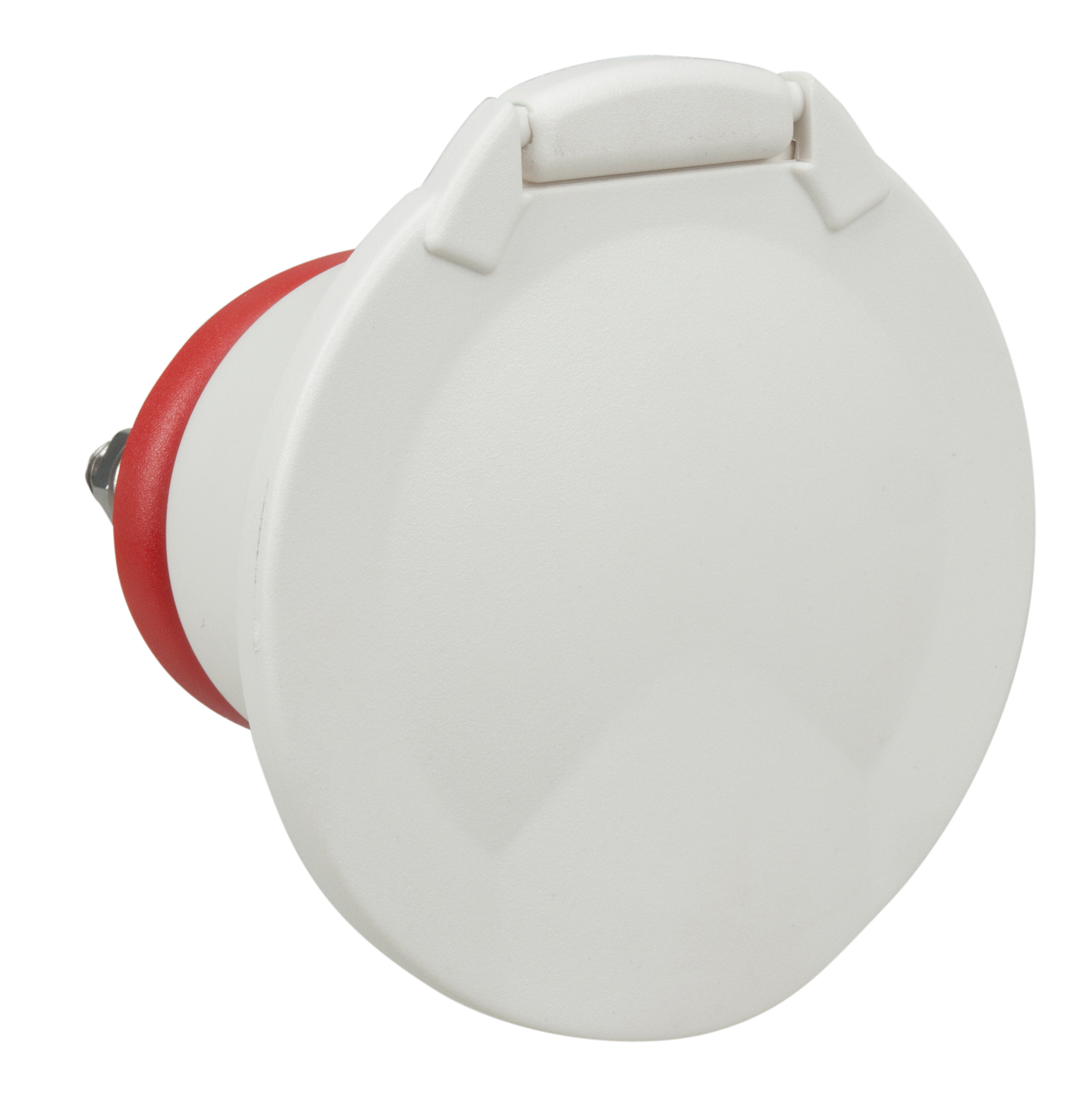

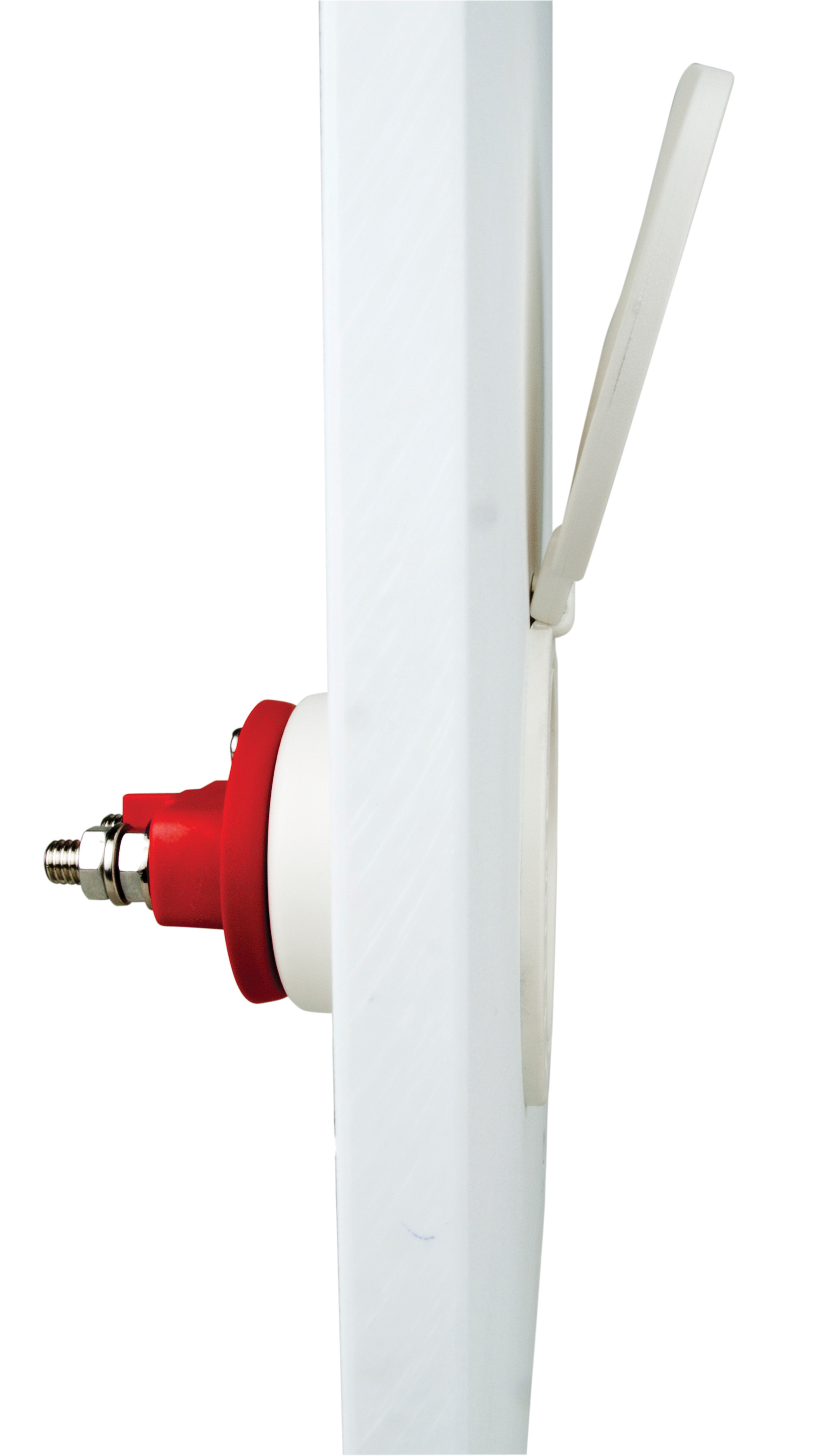

The third mounting option is a cup mount. This option creates an attractive, durable easy open/close cover and protects the switch face. A installation hole size of 3" is required for this option.

Ordering Information

Description	Dealer Pkg 5 Pcs. 1 Pc. per Pkg.	OEM Bulk Pkg. 25 Pcs.
Switch with Mounting Rings & Legs	9621DP	---------
Switch Only with Ring	---------	9621R
Switch Only with Legs	---------	9621L
Switch Only with Cup	9621DPC	9621C
